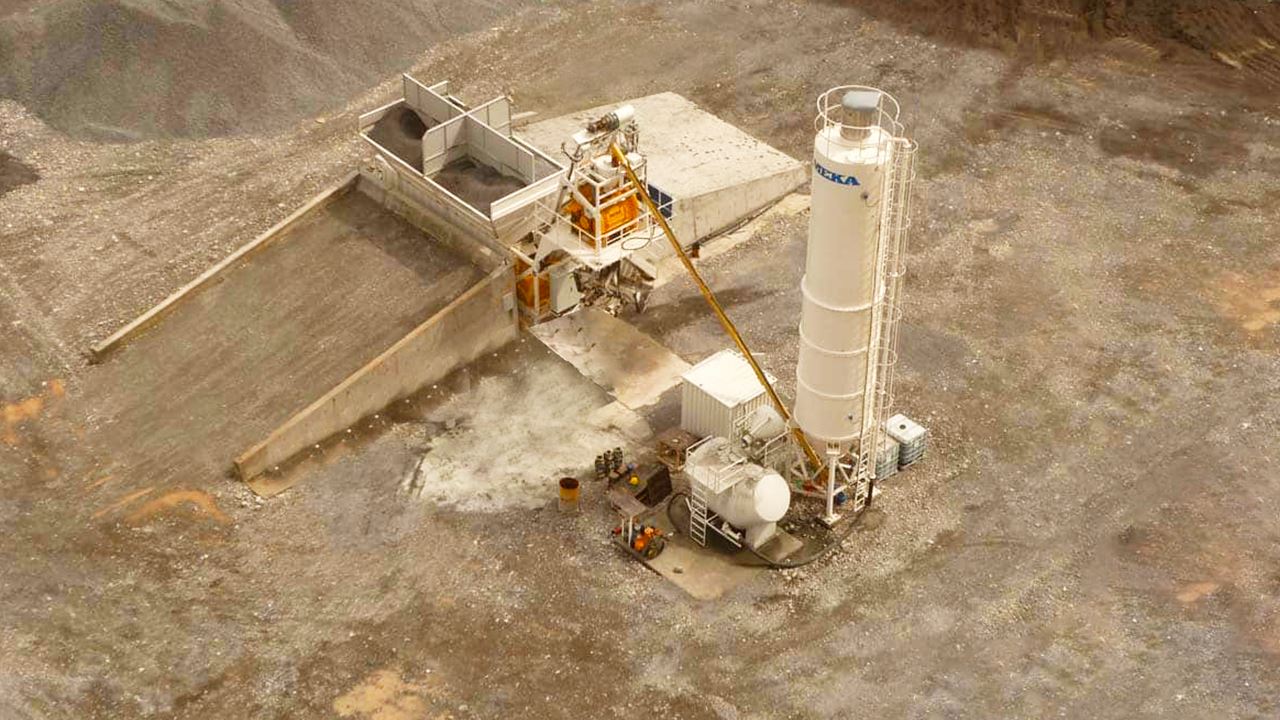

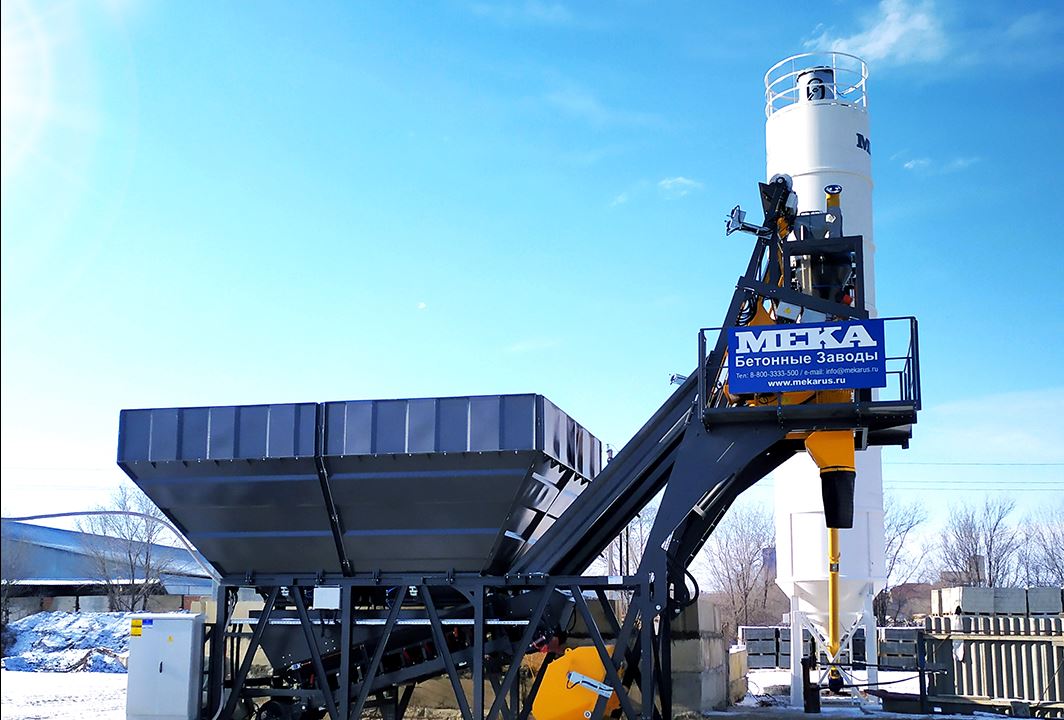

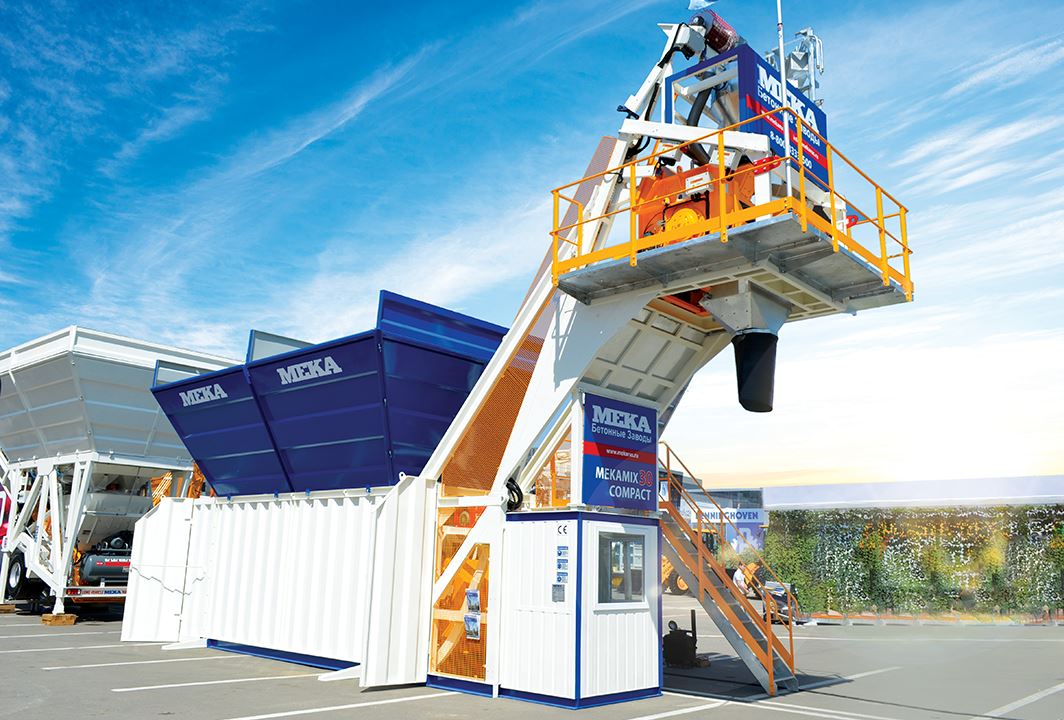

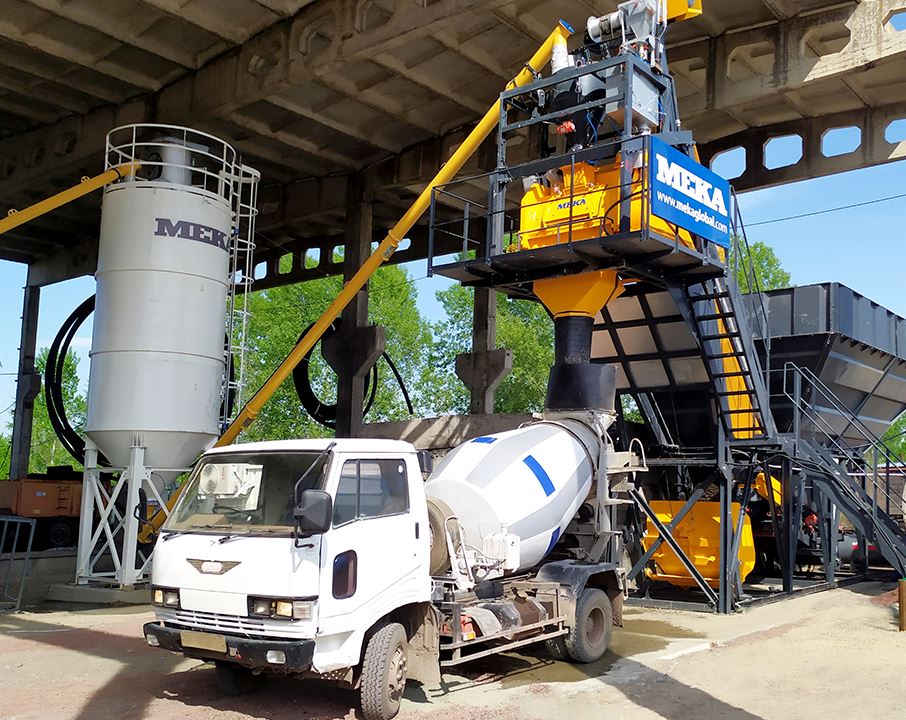

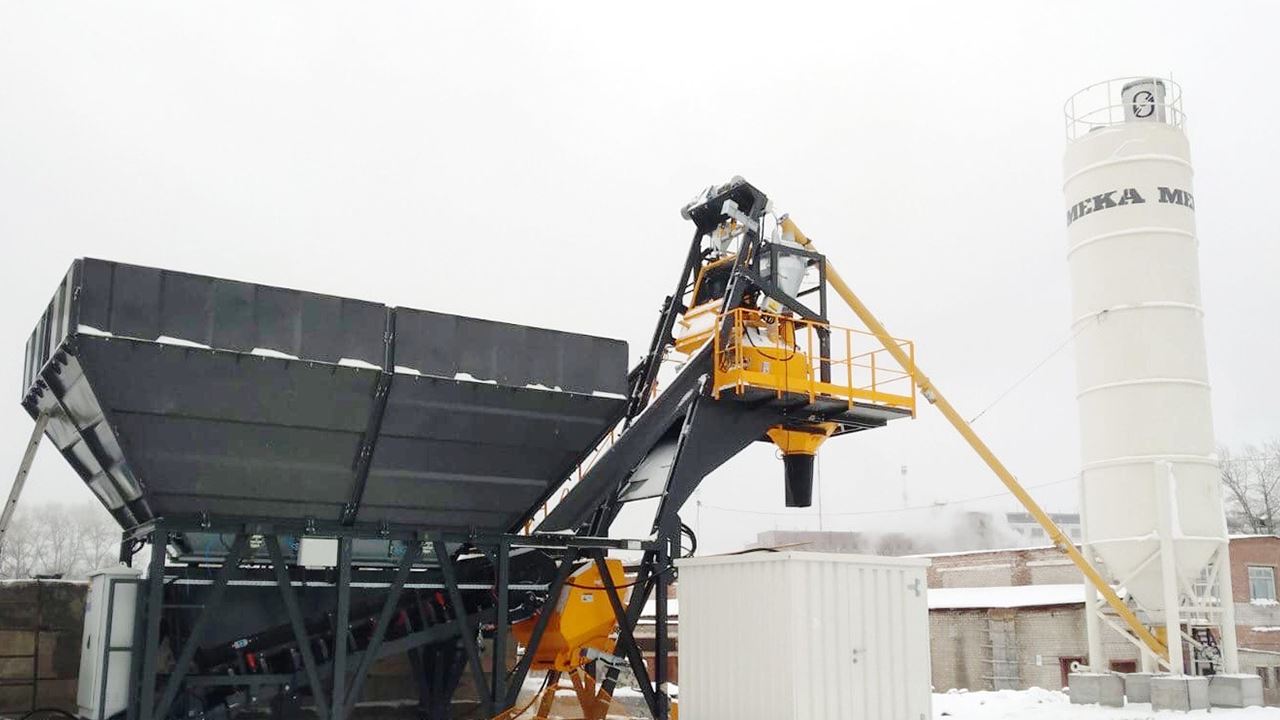

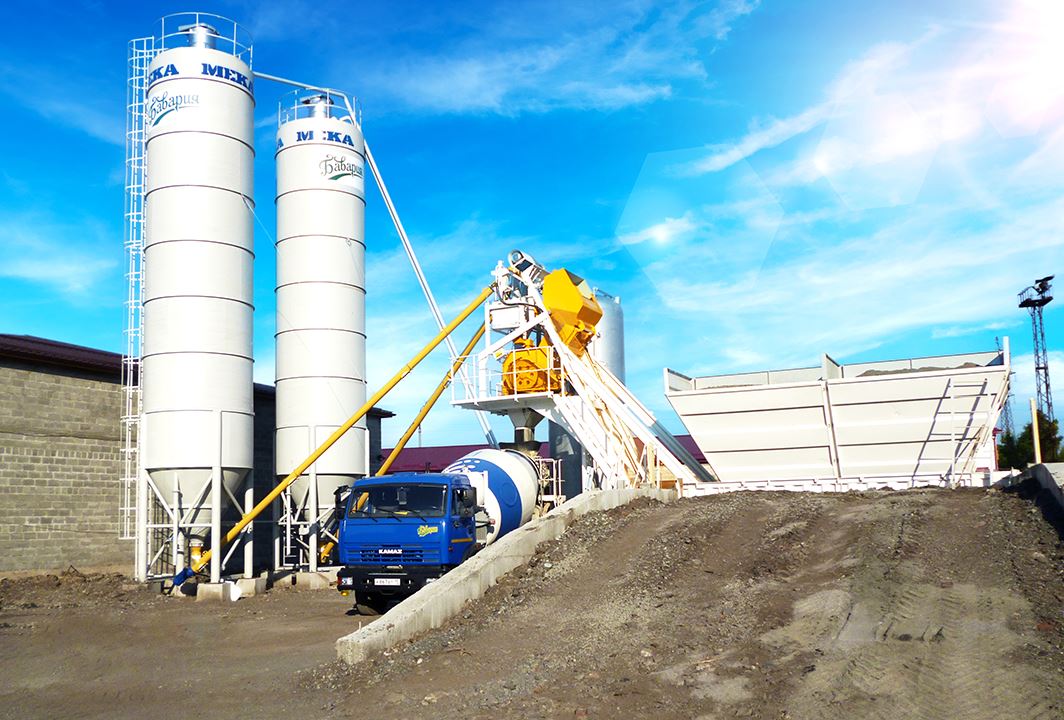

C30 Compact Concrete Batching Plant

ENGINEERED FOR QUICK CONCRETE PRODUCTION ON TIGHT WORK SITES

C30 model is the best choice for low-volume production on small and tight work sites. Combining the advantages of fast installation with a small footprint C 30 is the best choice for construction companies. The installation requires minimum or no foundations, reducing operational costs and bringing mobility to a new level.

PLANT CAPACITY

30 m³/hour

CONCRETE MIXER

Mixer Type

Single Shaft / Planetary Mix

Mixer Capacity

0,5 m³/cycle

Mixer Motor Power

18,5 kW

STORAGE & FEEDING

Aggregate Bins

4x7 m³ Cross Type

Aggregate Feeding

Ramp or Pre-Feeding System

HOPPERS

Cement Weighing Hopper

300 kg

Water Weighing Hopper

160 kg

Additive Weighing Hopper

20 kg

MEKA Concrete Batching Plants3956 KB

HIGHLIGHTS / C30

Perfect Solution for Tight Site Areas
Due to the ultra-compact design, C 30 Batch plant is the best solution for concrete production in tight sites.
Ultra-Performance and Smart Solution
MEKA C 30 Compact concrete batching plants are flexible, durable, and give class-leading productivity. The plant is preferred by contractors for concrete needs for an efficient, unique, and fast solution.
Suitable for Container Transport
Concerned about Transport costs? Nowhere is too far or too expensive to supply or purchase a proper concrete batching plant, as our C 30 compact model fits in standard 40’ OT containers.
Quick Start Up Time
C 30 compact concrete plants are designed to minimize work on-site during installation and are pre-wired with maximum equipment installed, plumbed, and tested at the manufacturing facilities.

C30 / TECHNICAL SPECIFICATIONS

	Metric	Imperial
Compacted Concrete Output	30 m³/h	-
Mixer Capacity (Compacted Concrete)	0,5 m³/cycle	-
Mixer Type	Single Shaft / Planetary Mixer
Mixer Motor Power	18,5 kW	-
Aggregate Bins	4x7 m³ Cross Type	-
Aggregate Feeding	Ramp or Pre-Feeding System
Aggregate Transfer	Skip	-
Air Compressor	Piston Type (5,5 kW)	-
Cement Weighing Hopper	300 kg	-
Water Weighing Hopper	160 kg	-
Additive Weighing Hopper	20 kg	-
Cement Screw Conveyor	Ø 193 x 11.500 mm	-

Click for the comparison table of technical specifications of Meka Mobile Concrete Batching Plants.

LEARN MORE ABOUT THE PRODUCT

Didn’t find what you are looking for? Feel free to get in touch with us. Just call +90-312-397-91-33 and we will help you in any way we can. You can also send an e-mail to [email protected], or fill in the inquiry form if you would like to pass us a detailed inquiry or project information. Use the Call Back option if you would like to be contacted by our sales team.
