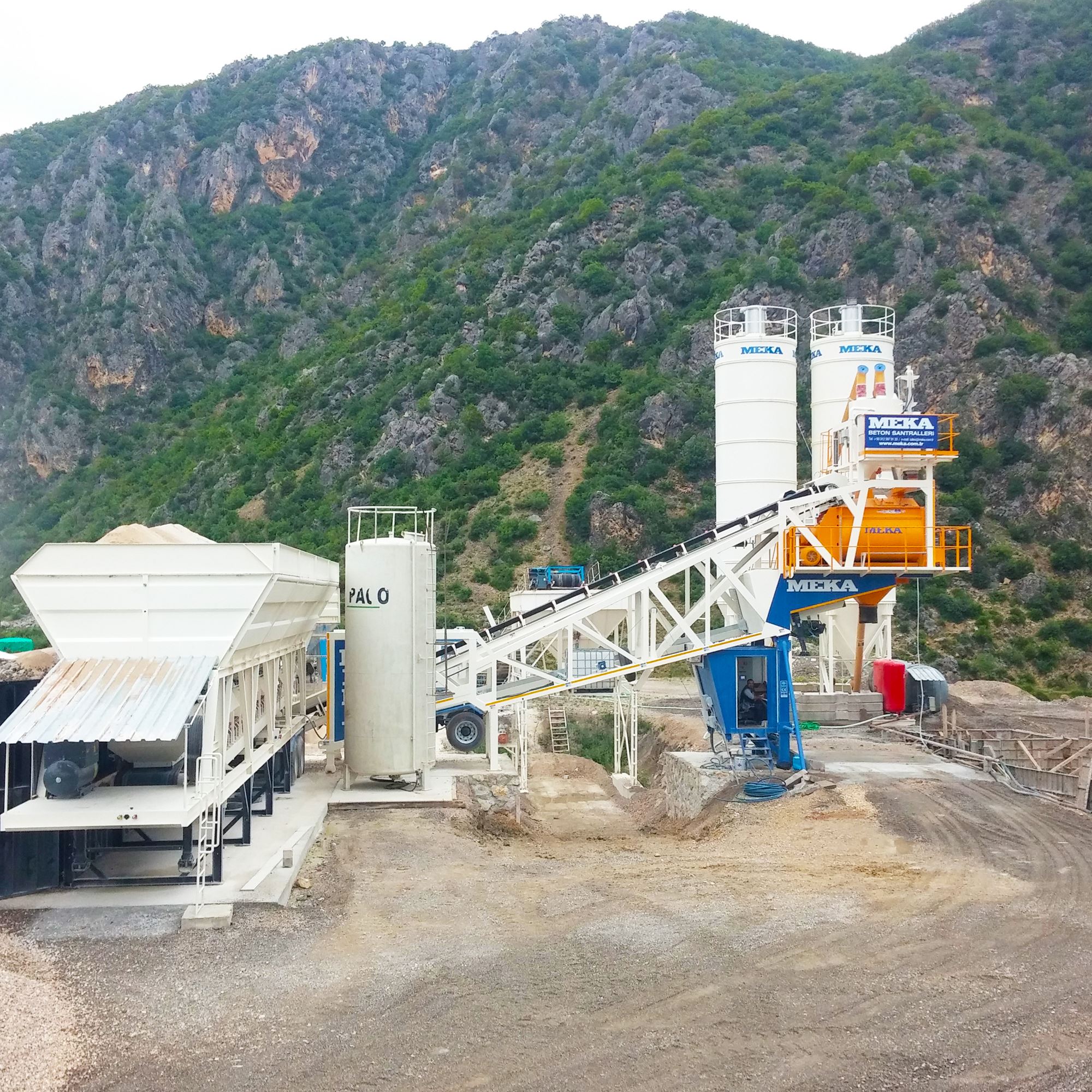

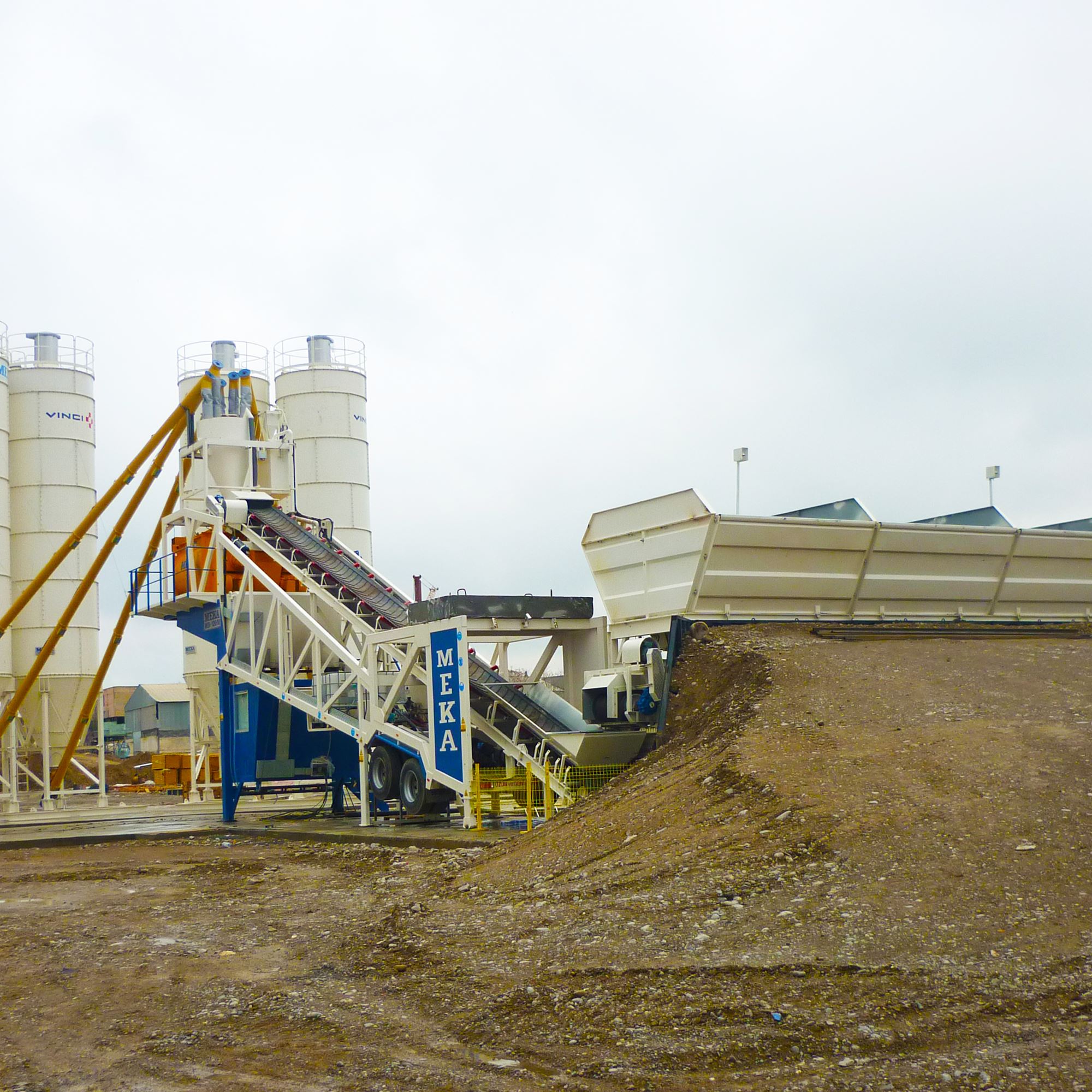

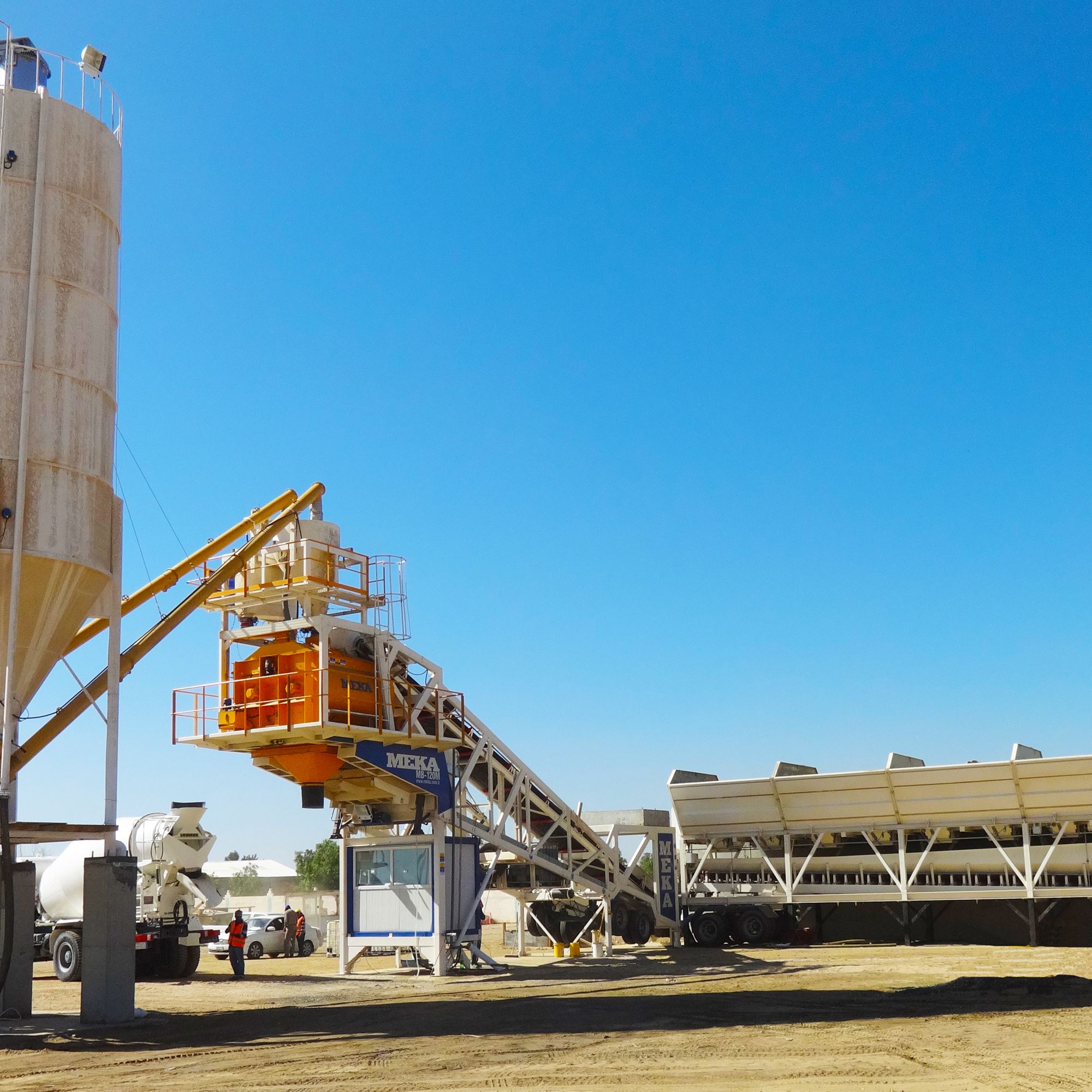

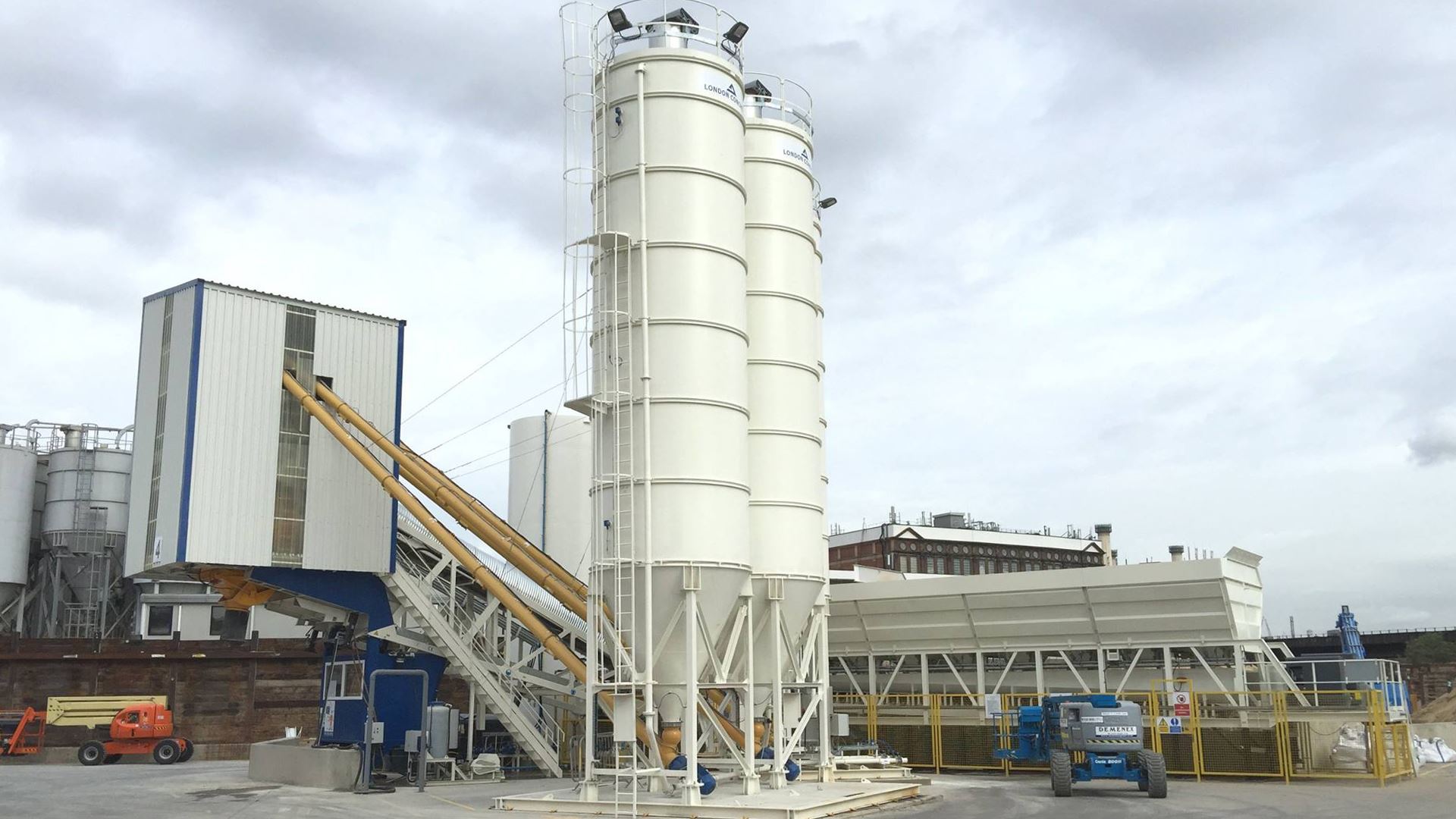

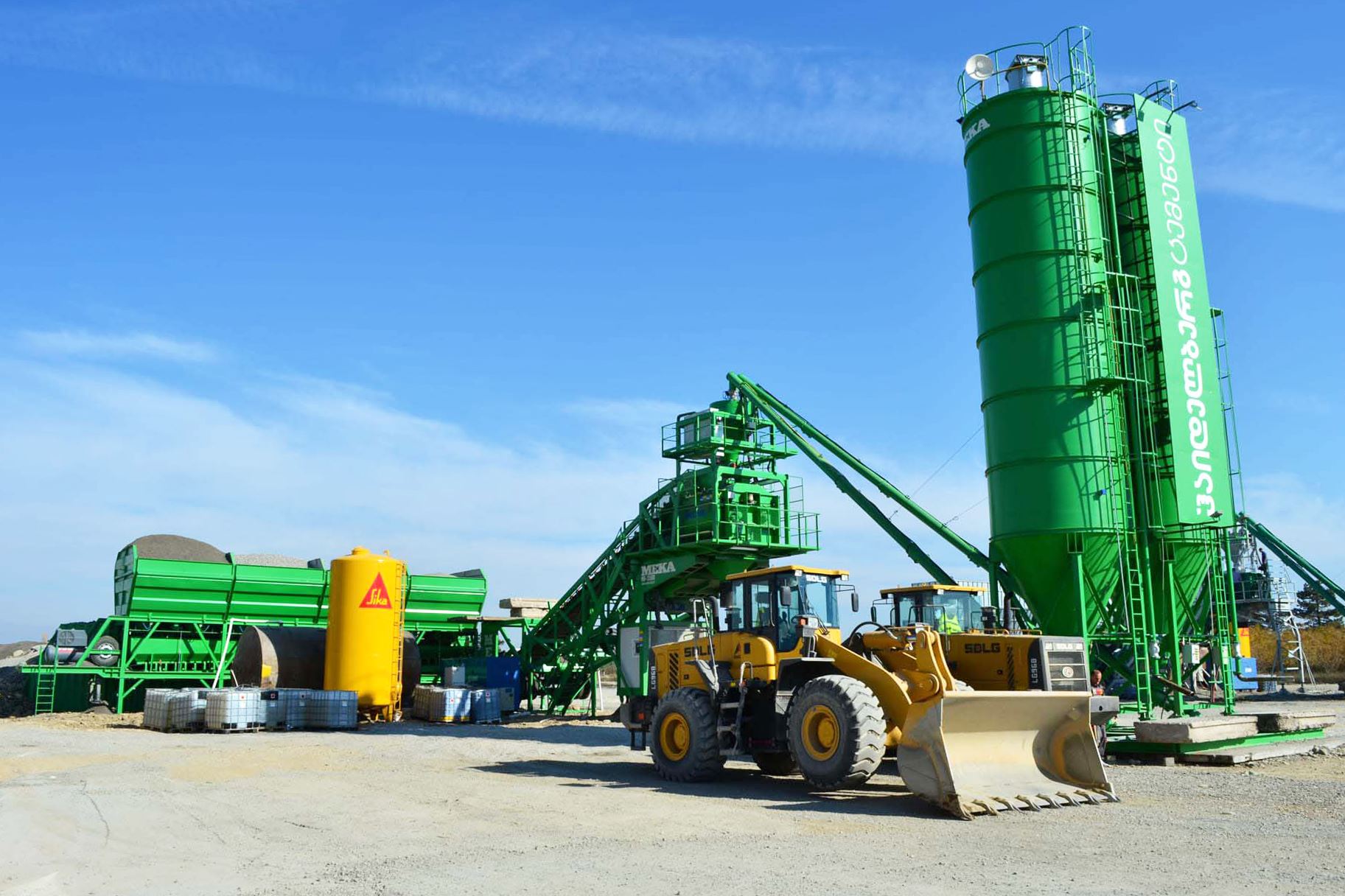

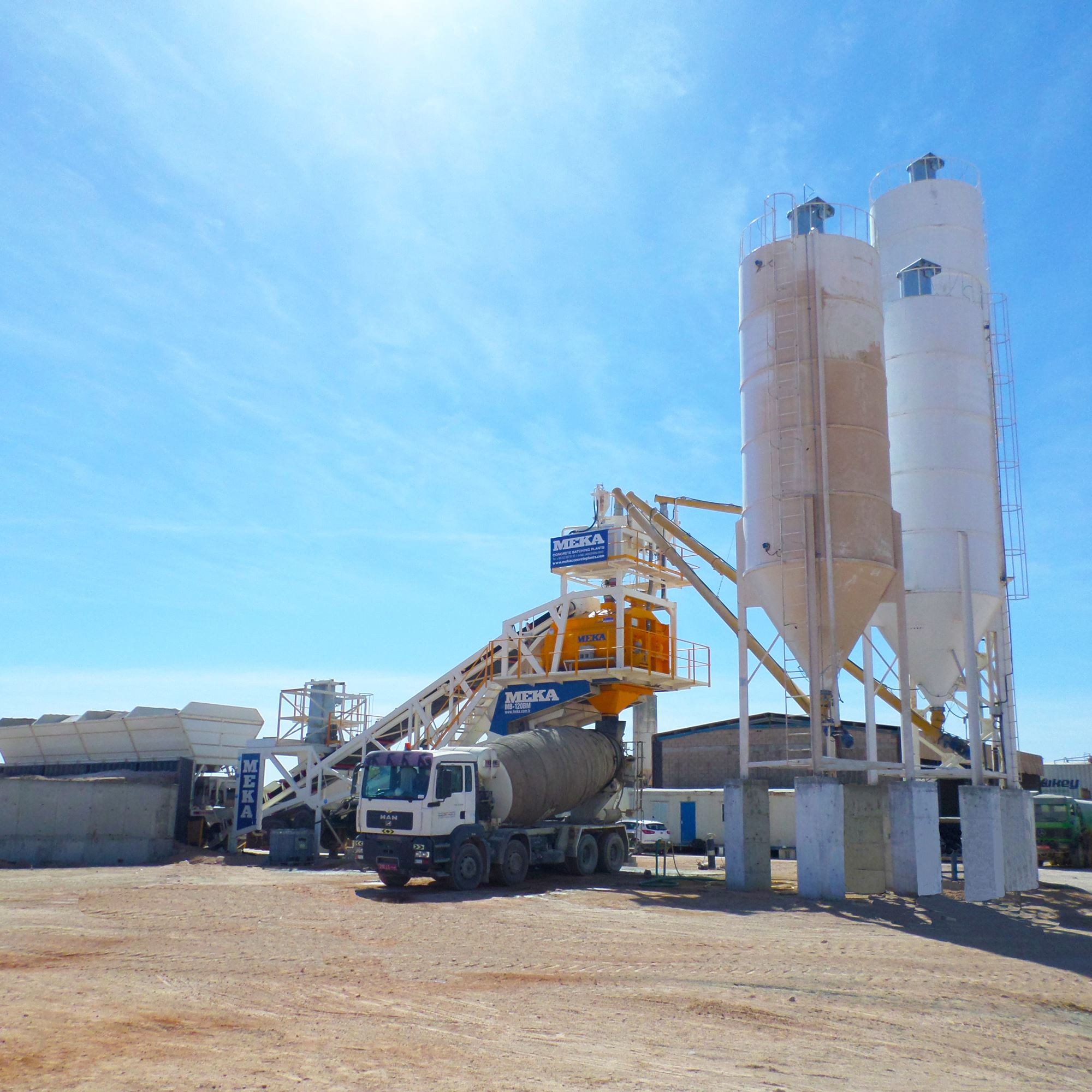

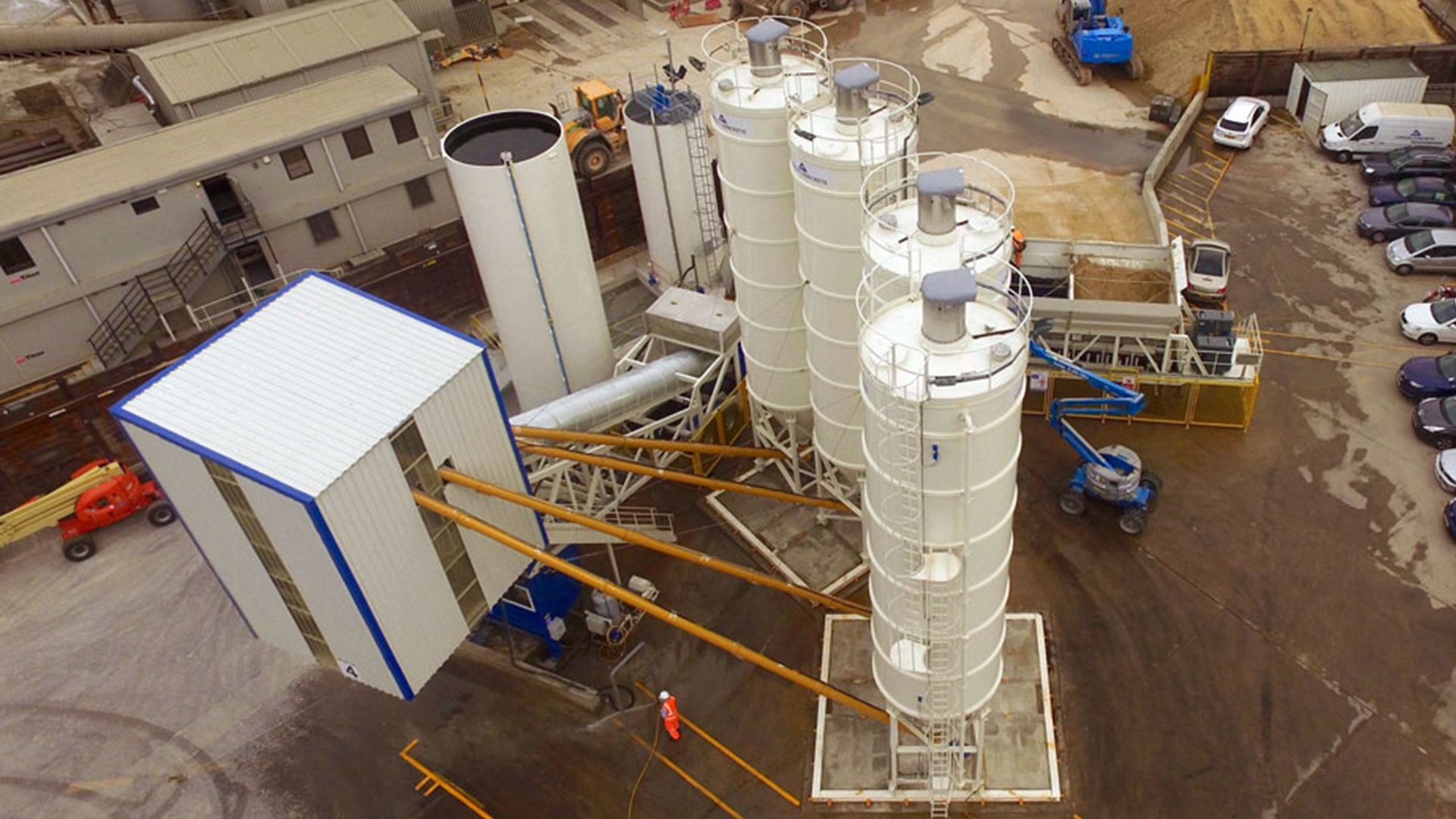

M120 Mobile Concrete Batching Plants
M120 Mobile Concrete Batching Plants
THE BEST CHOICE FOR MASS CONCRETE PRODUCTION FOR SHORT-TERM PROJECTS
The M 120 model is the optimum choice for mass concrete production on temporary work sites. The durability and aggregate bin storage capacity provided by stationary concrete batching plants combined with the flexibility of the mobile design make it an unmatched solution for every professional organization. The installation requires minimum foundations, reducing the operational costs and bringing mobility to a new level.

PLANT CAPACITY

120 m³/hour

CONCRETE MIXER

Mixer Type Meka Single

Meka Twinshaft Mixer

Mixer Capacity

3,33 m³ / cycle

Mixer Motor Power

2x 55 kW

STORAGE & FEEDING

Aggregate Bins

4x 25 m³ Inline Mobile Type

Aggregate Feeding

Ramp or Pre-Feeding System

HOPPERS

Cement Weighing Hopper

1.750 kg

Water Weighing Hopper

1.000 kg

Additive Weighing Hopper

40 kg

HIGHLIGHTS / M120
  • Ultra Performance and Flexibility
    MEKA M 120 Mobile concrete batching plants are flexible, durable and offer class-leading productivity. The model is preferred by contractors for temporary works, and by ready-mix concrete firms for its corporate flexibility.
  • Special Chassis Design
    All of the operational equipment required for production is installed on the main single chassis of the mobile concrete plant and is transported in place.
  • Quick Start Up Time
    To reduce installation time and crane operations, all of the main components of the M120 mobile concrete plant are installed, pre-wired and tested in the production facilities.
  • Minimum Foundation Required
    Thanks to their design, Meka mobile batching plants require no or minimal foundations, thus reducing the operating costs and bringing mobility to a new level.
  • 180 Degree Truck Mixer Aproach
    Due to its heavy duty chassis design, the M120 MEKA mobile concrete batching plant requires no front supports. The absence of front supports not only reduces the installation time, but also brings useful operational characteristics, allowing mixer trucks to approach from three angles (180 degrees) and drive through. This feature is very useful for strict and narrow sites.
M120 / TECHNICAL SPECIFICATIONS

Metric

Imperial

Compacted Concrete Output 120 m³/h -
Mixer Capacity ( Compacted Concrete ) 3,33 m³ /cycle -
Mixer Type Twinshaft Mixer
Mixer Motor Power 2x 55 kW -
Aggregate Bins 4x 25 m³ Inline Mobile Type -
Aggregate Feeding Ramp or Pre-Feeding System
Aggregate Transfer Belt -
Air Compressor Piston Type (7,5 kW) -
Cement Weighing Hopper 1.750 kg -
Water Weighing Hopper 1.000 kg -
Additive Weighing Hopper 40 kg -
Cement Screw Conveyor Ø 273 x 15.000 mm -
Click for the comparison table of technical specifications of Meka Mobile Concrete Batching Plants.
