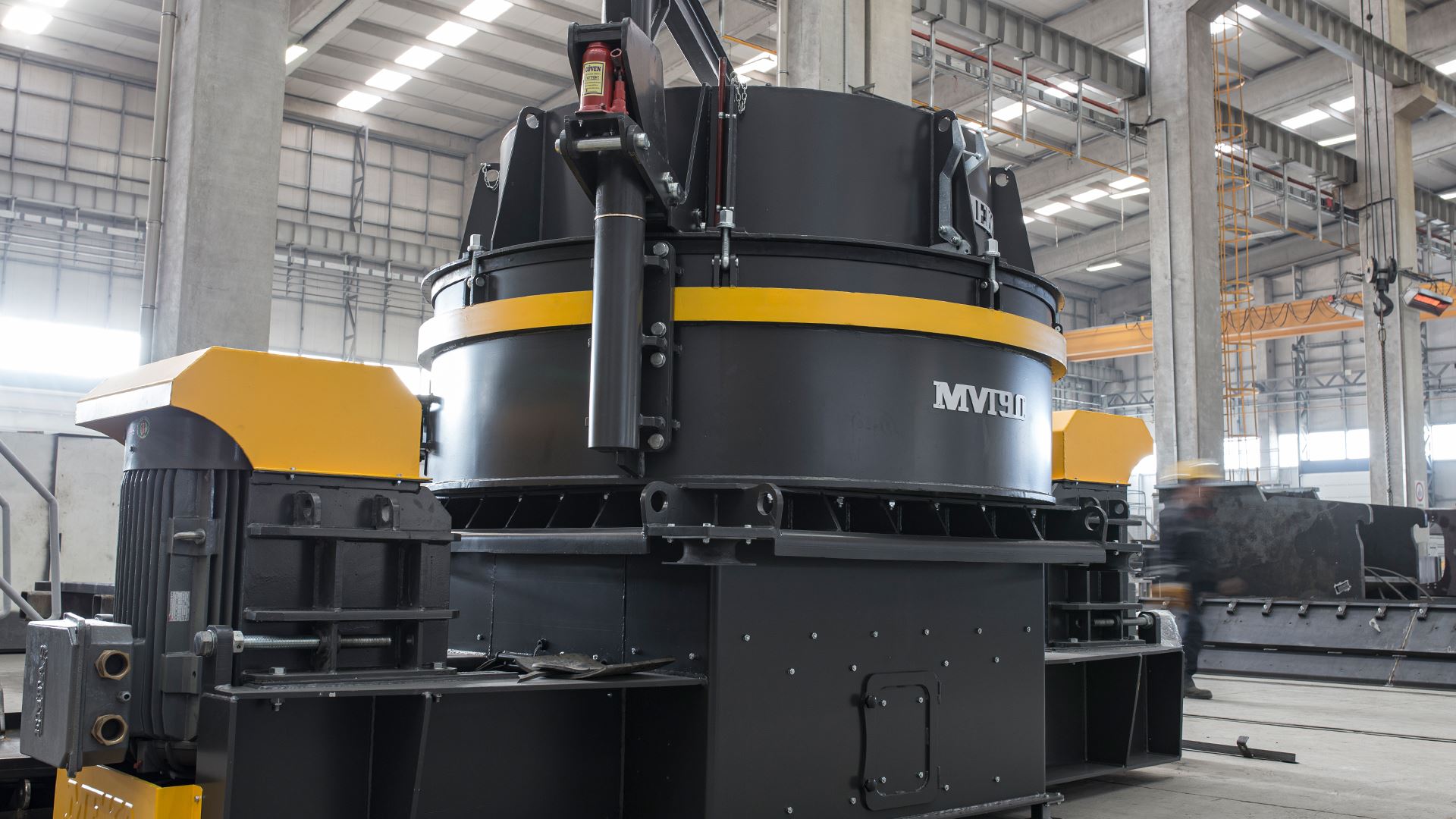

MVI-G Series

VERTICAL SHAFT IMPACT CRUSHER - G MODEL

EXCEPTIONAL MINERALS BENEFICIATION CAPABILITIES
  1. Home Page
  2. Crushing & Screening Plants
  3. Crushers
  4. Vertical Shaft Impact Crusher - G Model

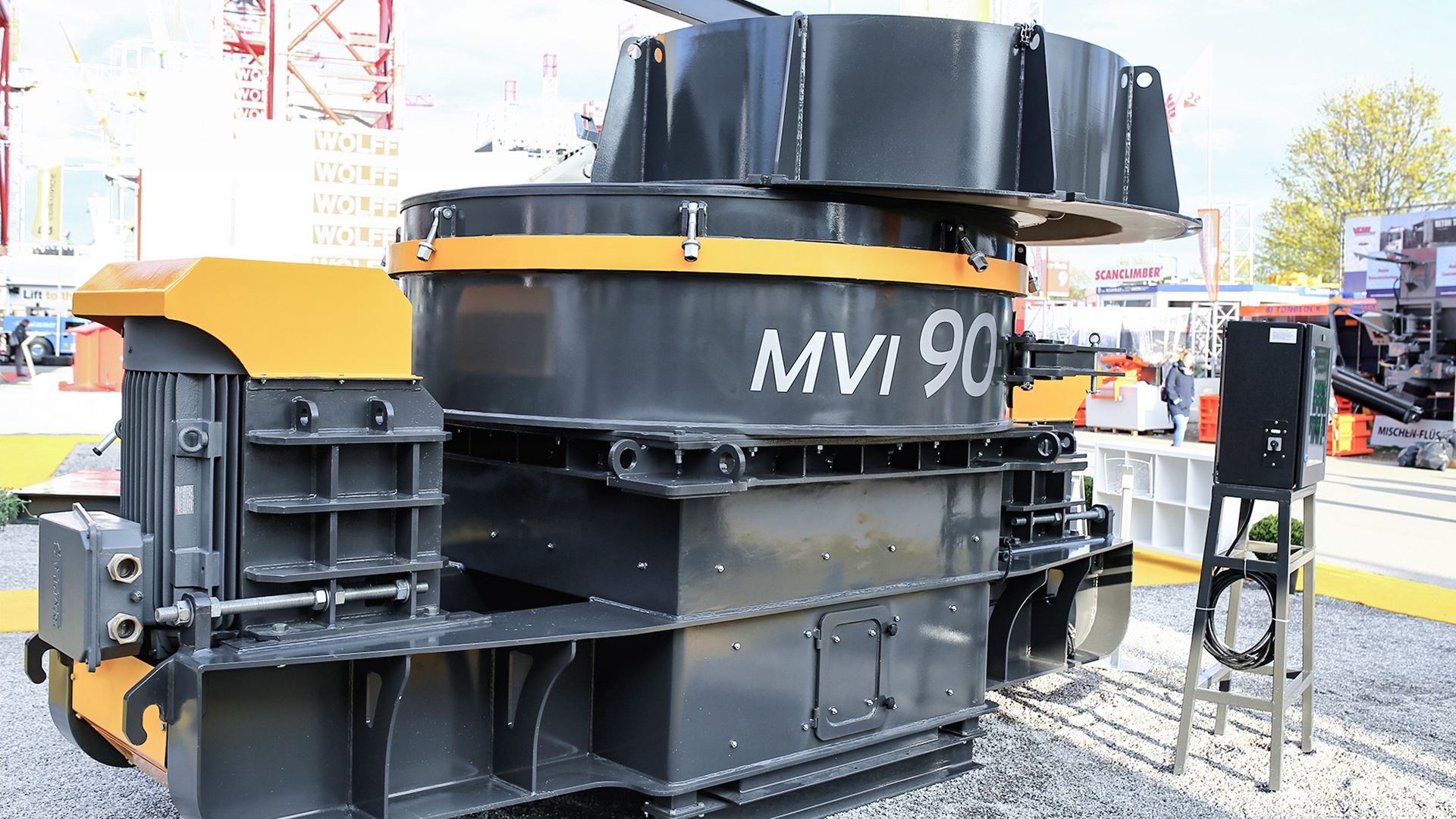

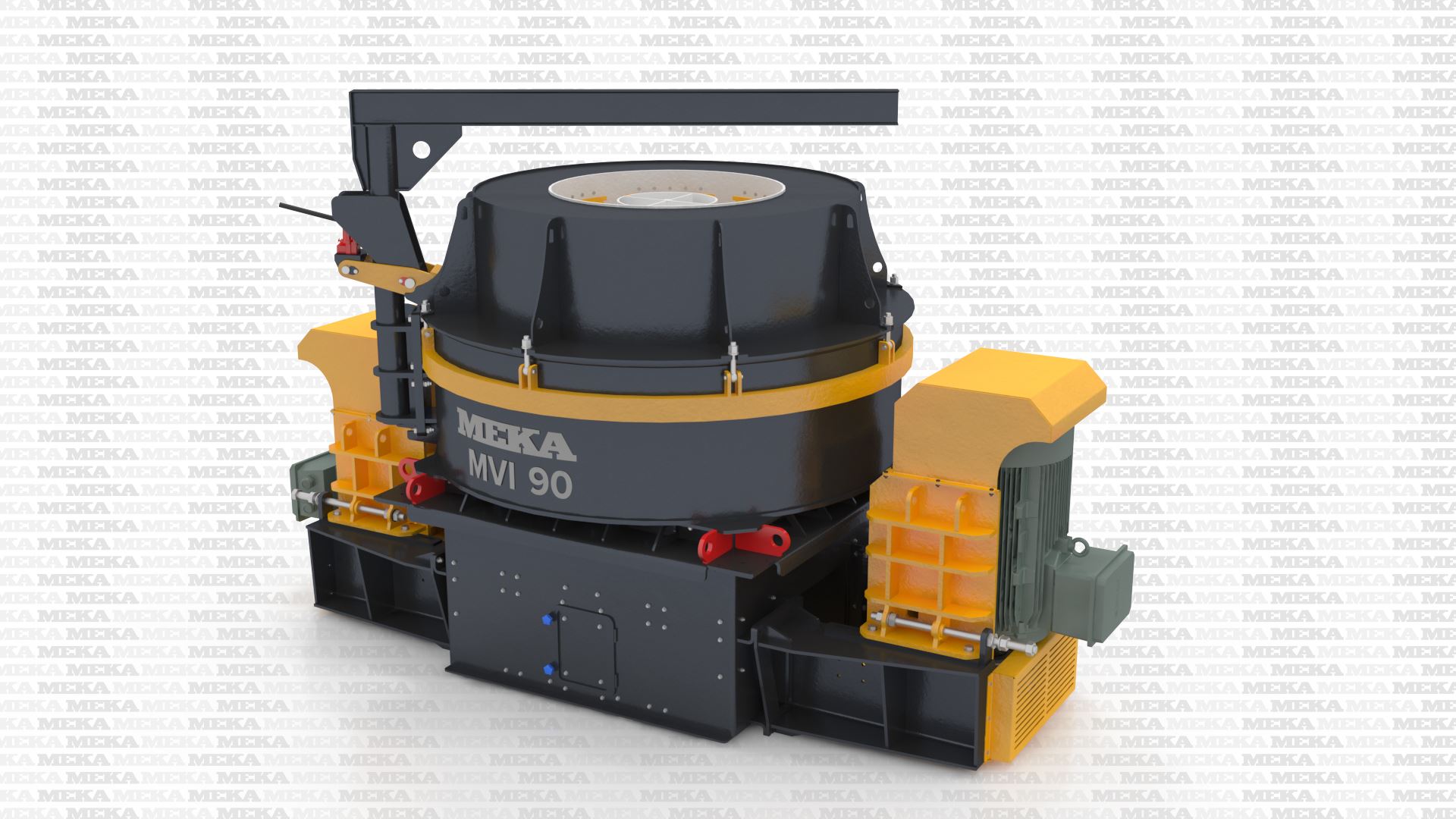

Vertical Shaft Impact Crusher (MVI-G) Series is specifically designed for shaping the material after a cone crusher. Rock on rock designation means a few and inexpensive wear parts compared to other alternatives. Adjustable speed and adjustable cascade increases control on the final product.

APPLICATIONS
MVI-G Series vertical shaft impact crusher are designed to be used in tertiary or quarternary stage crushing.
These crushers are suitable for a wide range of applications including the production of high quality manufactured sand, well formed aggregates and industrial minerals. Crushers can also be used for shaping or removal of soft stone from aggregate.

WHY MEKA VERTICAL SHAFT IMPACT CRUSHER - G MODEL?
•    Rock on rock design decreases operation costs

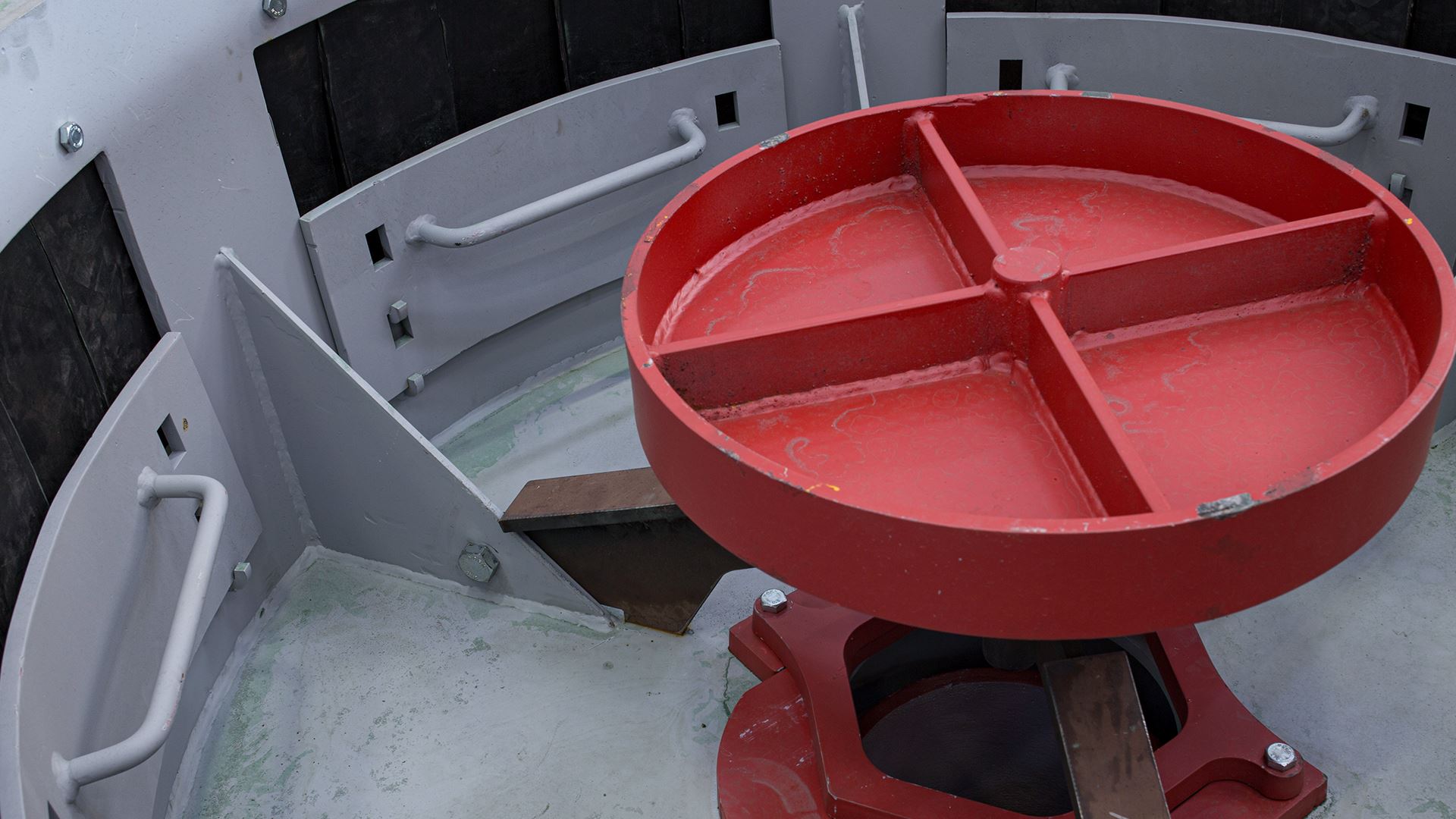

The rock-on-rock crushing principle of the crusher minimises metallic wear resulting in low maintenance and wear costs. The low wear of internal components ensures extremely low contamination of fine products by wearing metal parts.

•    Adjustable cascade provides control on final product gradation
The cascade feed system to introduce a second stream of material, in a controlled quantity, into the crushing chamber turbulence.

•    Shapes product after a cone crusher
Can be operated either in open or closed circuit after a cone crusher, depending on the types of aggregates and the specifications required.

•    Can accept upto 50mm feed size
Rock-on-rock technology minimises wear part requirements.


HIGHLIGHTS

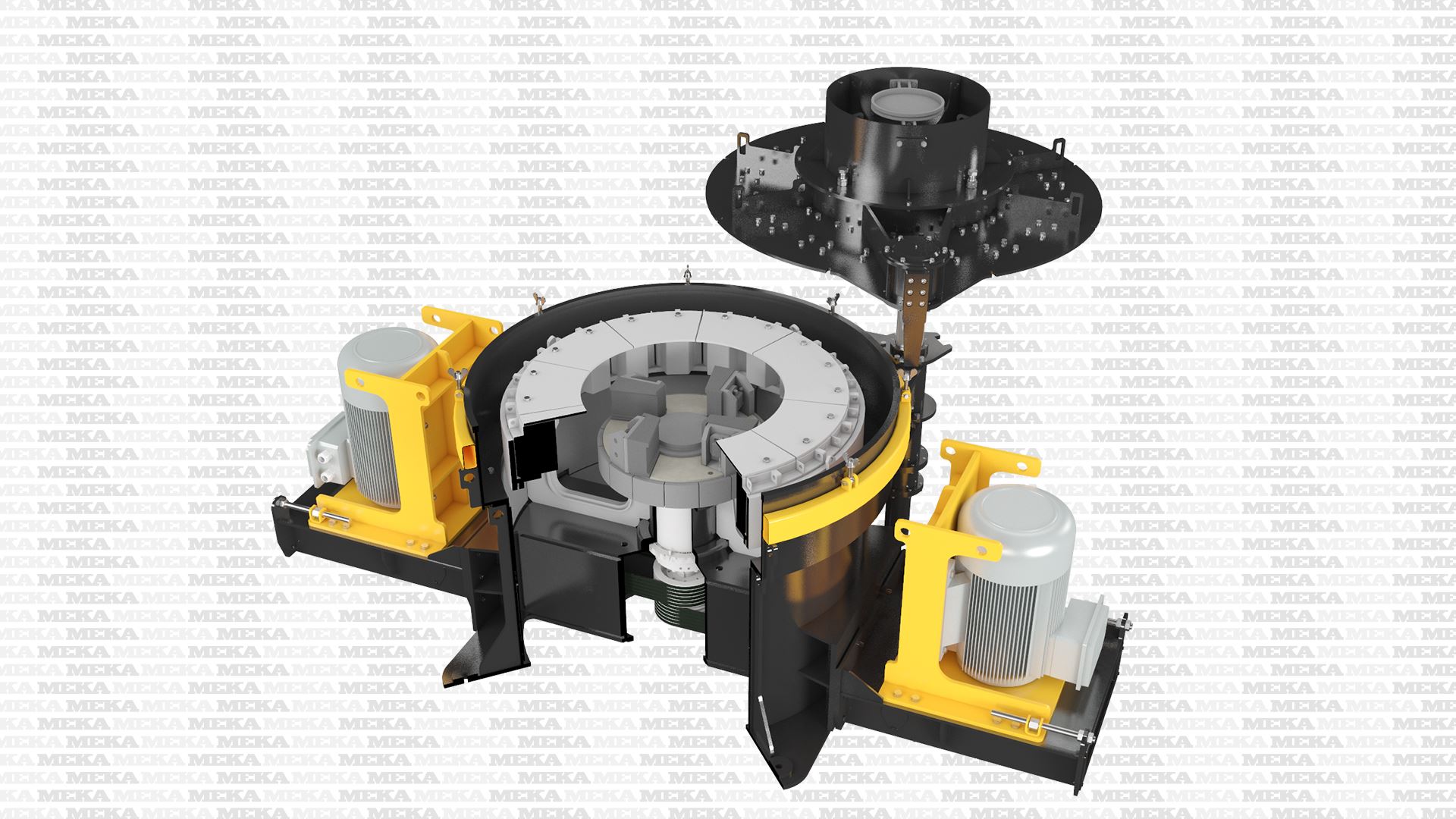

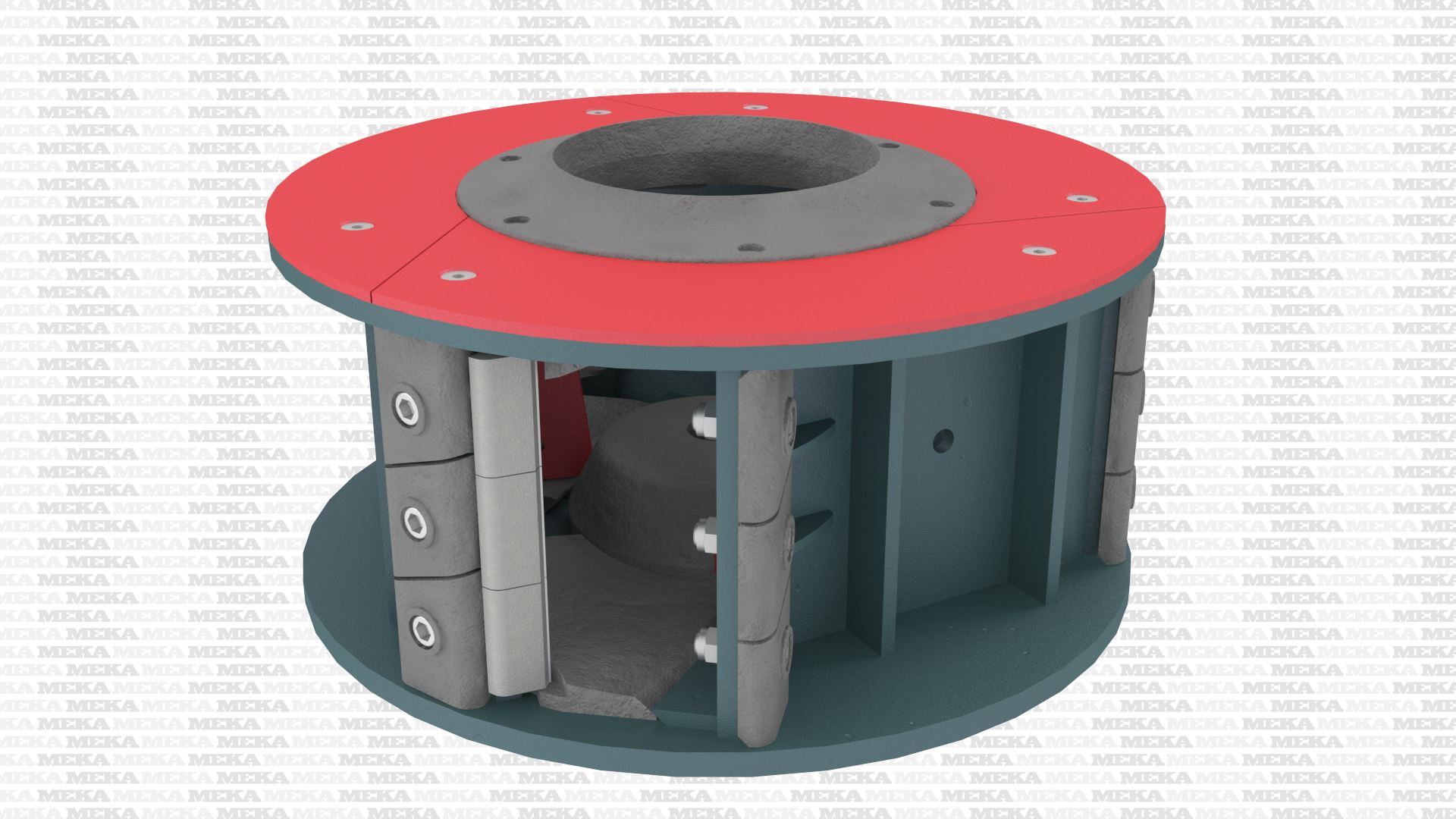

•    Dynamically balanced rotor

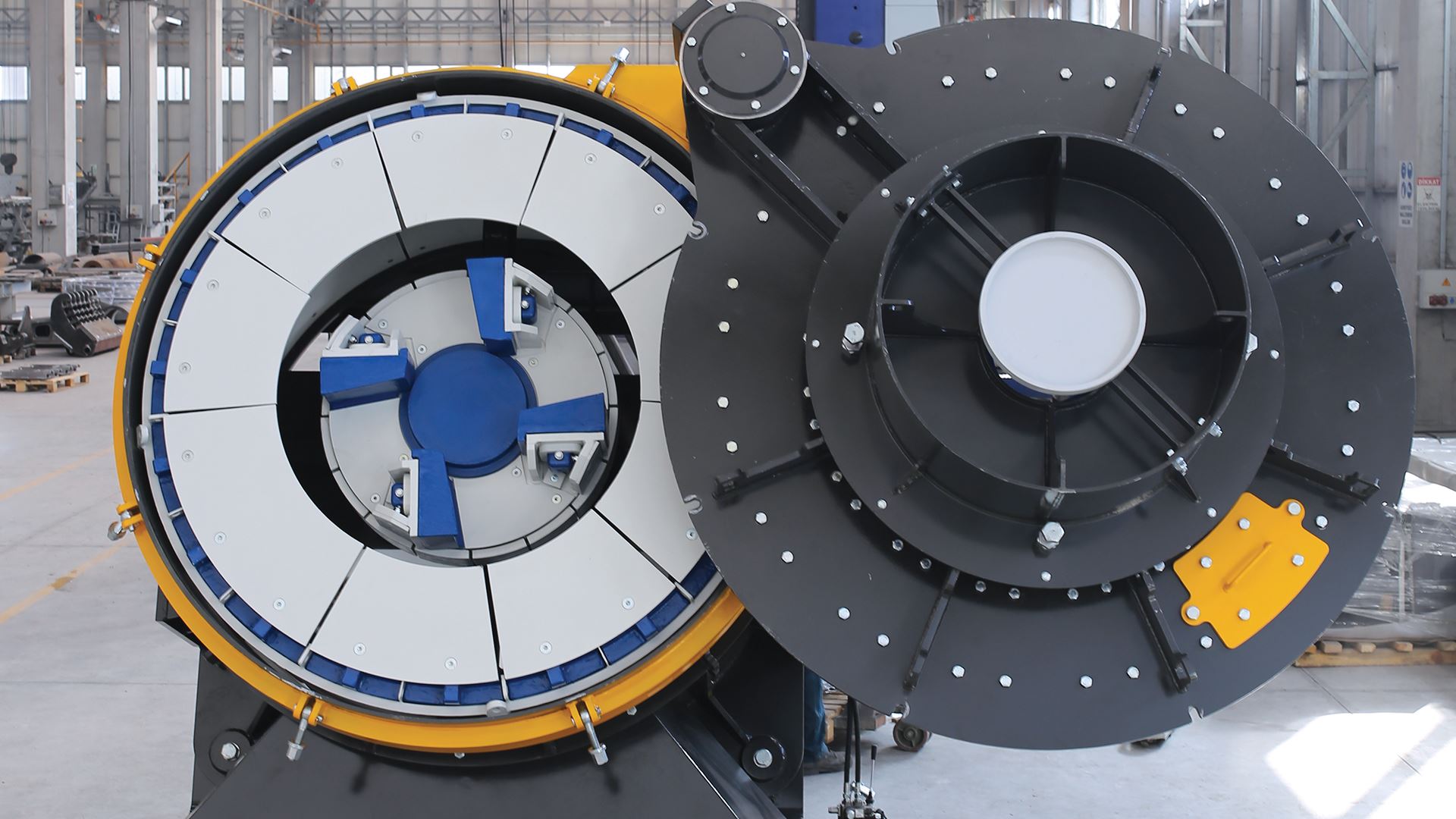

•    Service gate allows for easy inspection of rotor condition

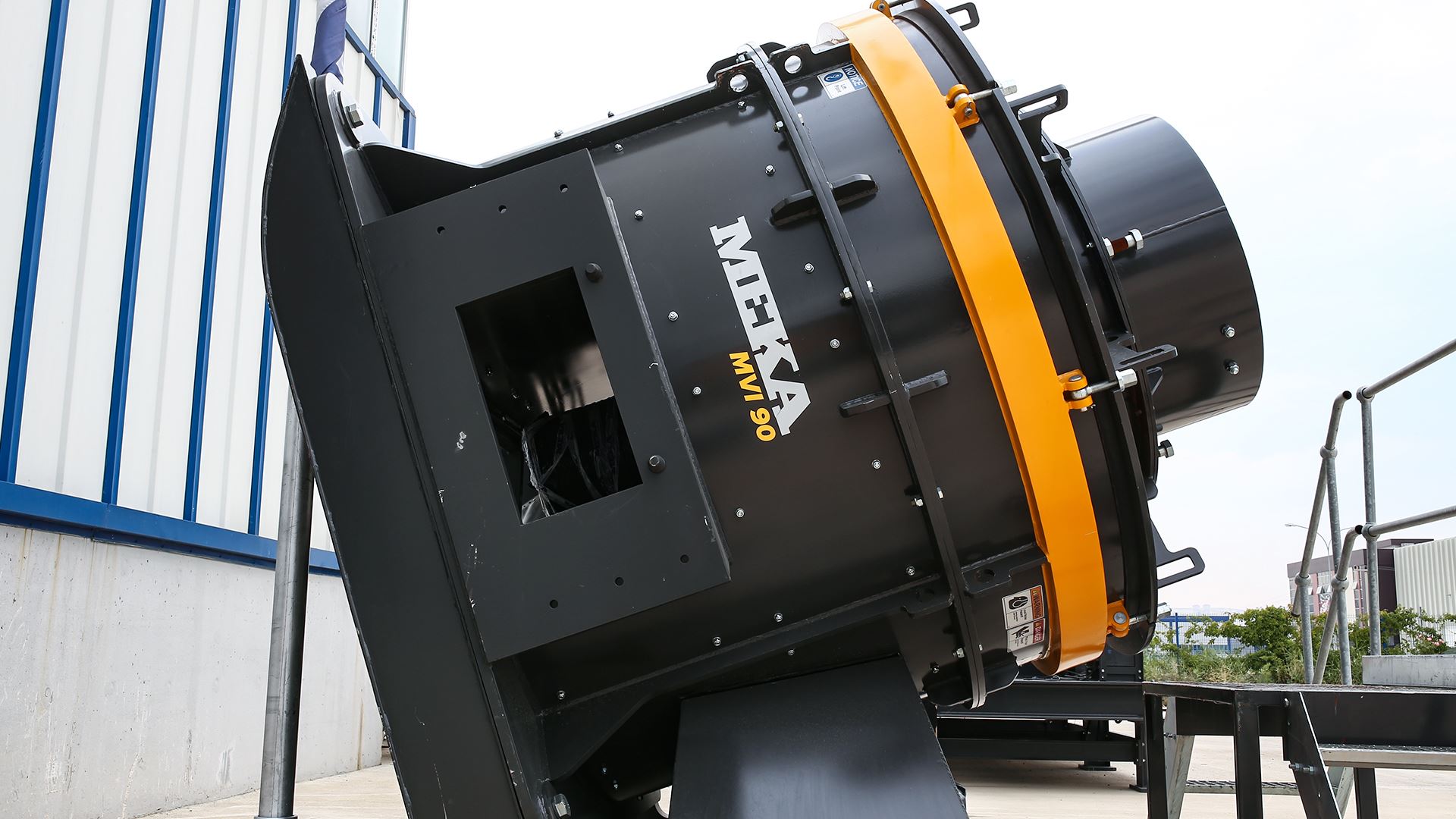

•    Hyraulicly opening top section provides easy maintenance
•    Interchangeable motor and drive pulleys allows on-site speed adjustment

VERTICAL SHAFT IMPACT CRUSHER - G MODEL / TECHNICAL SPECIFICATIONS

MVI 90G
(ROR SD)

MVI 90G
(ROR DD)

MVI 90G
(ROS SD)

MVI 90G
(ROS DD)

MVI 70G
(ROR SD)

MVI 70G
(ROR DD)

MVI 70G
(ROS DD)

MVI 70G
(ROS DD)

Max Feed Size (mm) Max Feed Size (inch) 50 2 50 2 50 2 50 2 35 1 ³/₈ 35 1 ³/₈ 35 1 ³/₈ 35 1 ³/₈
Capacity (mtph) Capacity (stph) 200 220 300 330 200 220 300 330 120 130 160 175 120 130 160 175
Power (kW) Power (HP) 200-250 275-340 2x110-200 2x150-275 200-250 275-340 2x110-200 2x150-275 110-160 150-220 2x110 2x150 110-160 2x150-220 2x110 2x220
Speed (rpm) Speed (rpm) 1400-1800 1400-1800 1400-1800 1400-1800 1400-1800 1400-1800 1400-1800 1400-1800 1500-2100 1500-2100 1500-2100 1500-2100 1500-2100 1500-2100 1500-2100 1500-2100
Weight (kg) Weight (lbs) 9180-9540 20240-21030 11090-11550 24450-25460 11660-12060 25705-26590 13240-14060 29190-31000 5595-5695 12335-12555 7100 15650 7020-7120 15480-15700 8525 18795
*For material weighing 1.6 t/m³ or 100 lbs/ft³.
Capacity values are indicative only, crusher performance may vary depending on the feed gradation, feed moisture content,crushability of the material, crusher rpm, installed power and the crushing circuit design.

**Weights shown do not include drive motor package, support legs, maintenance platform, inlet and outlet chutes

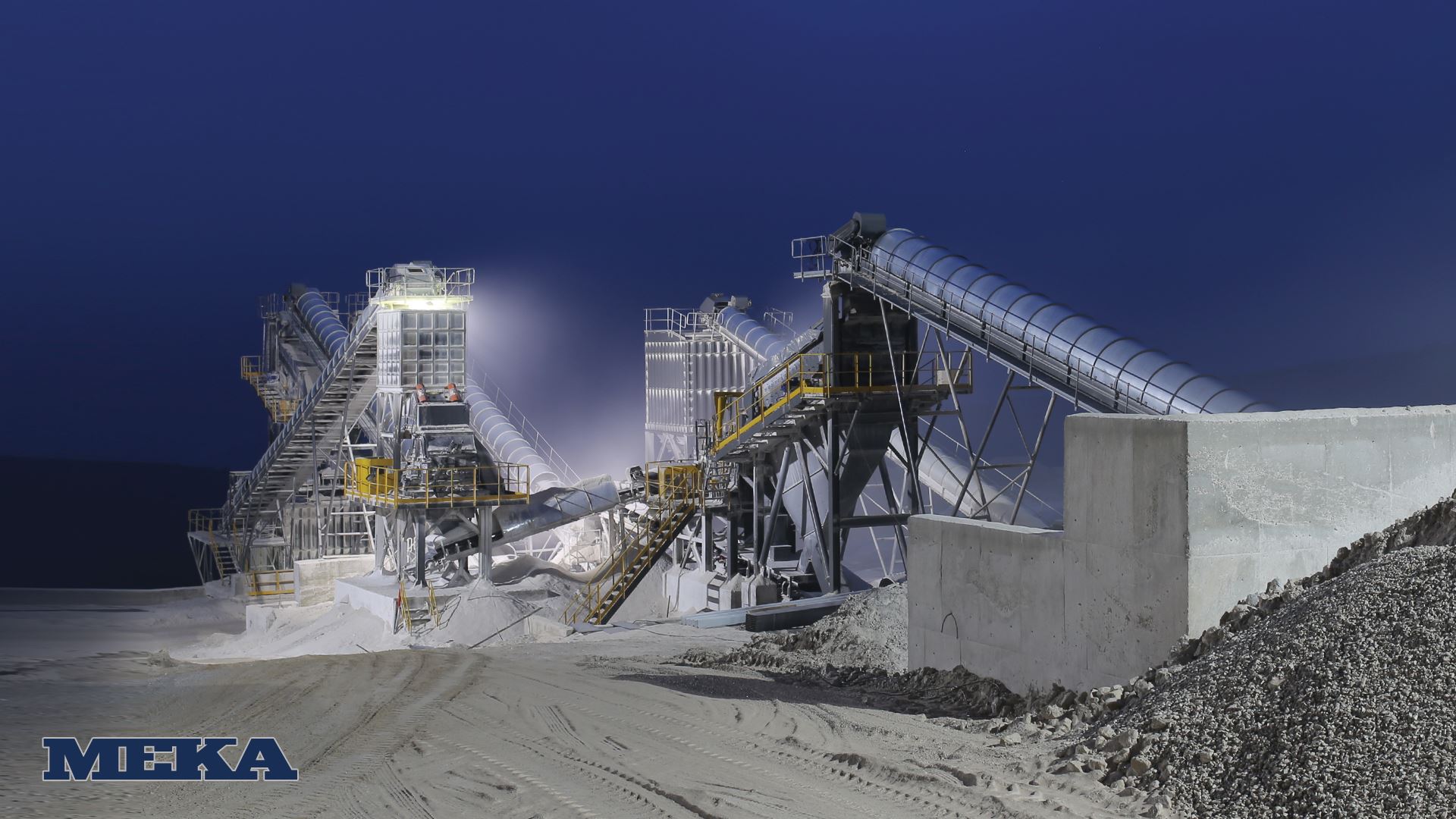

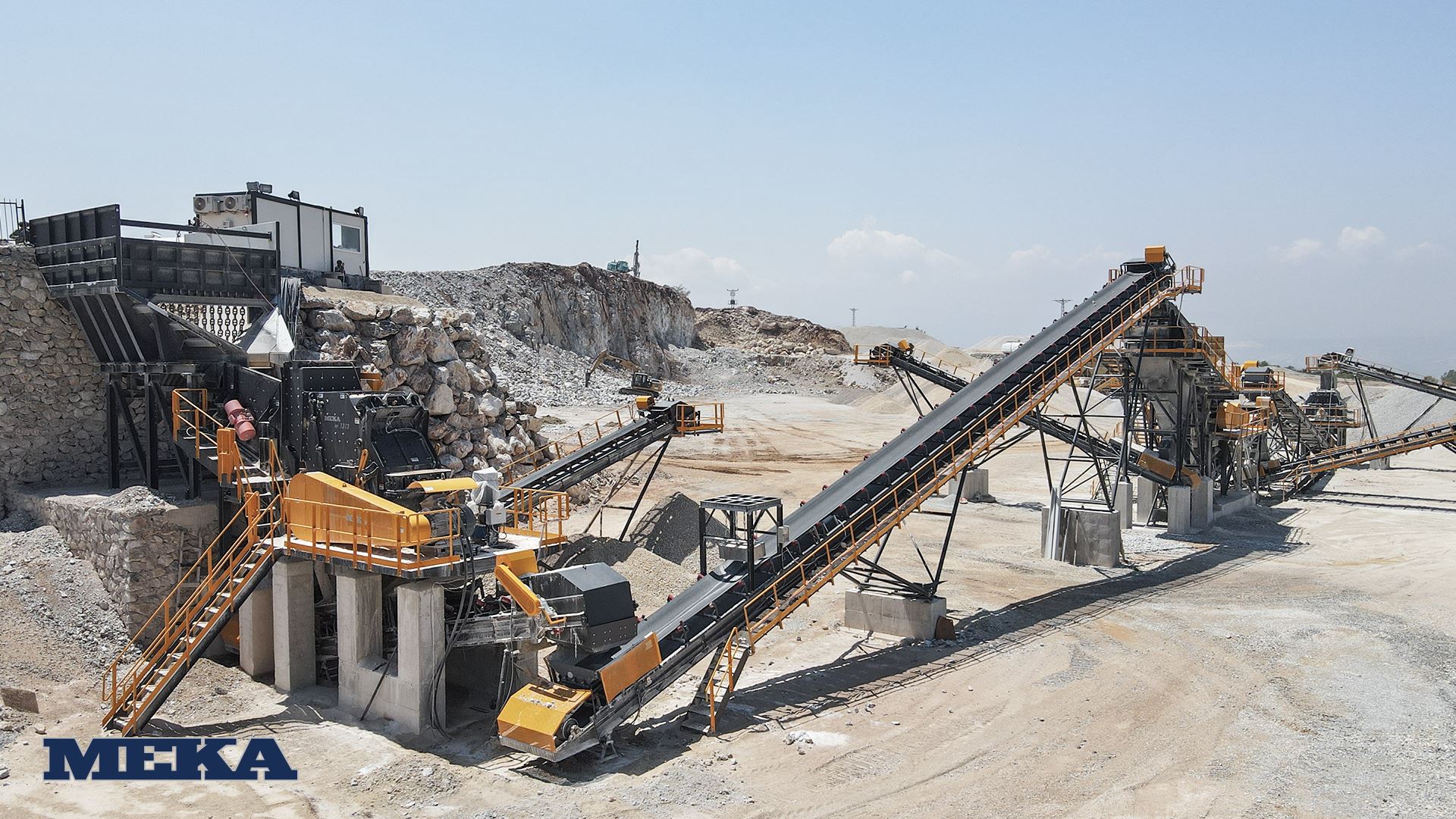

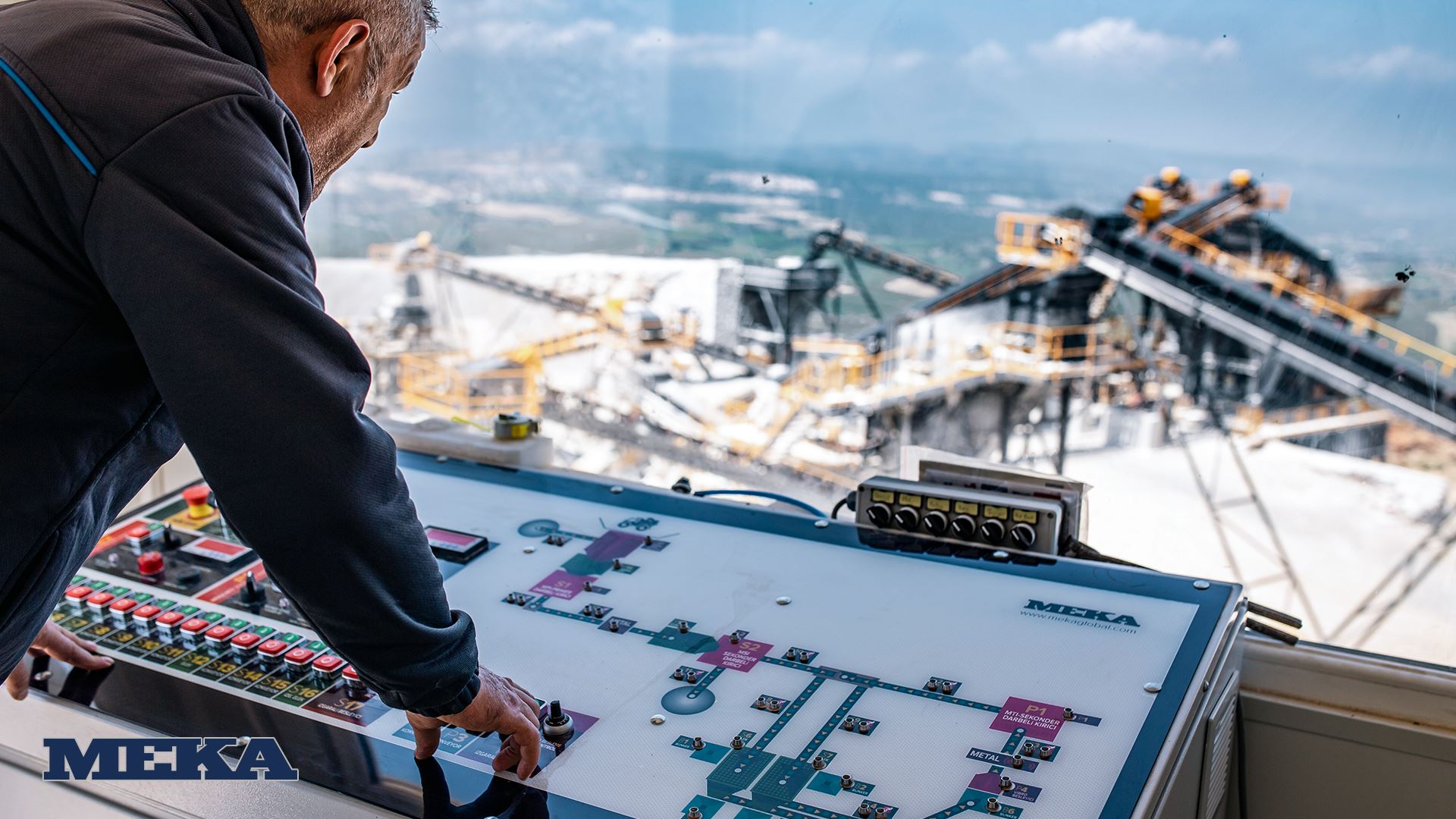

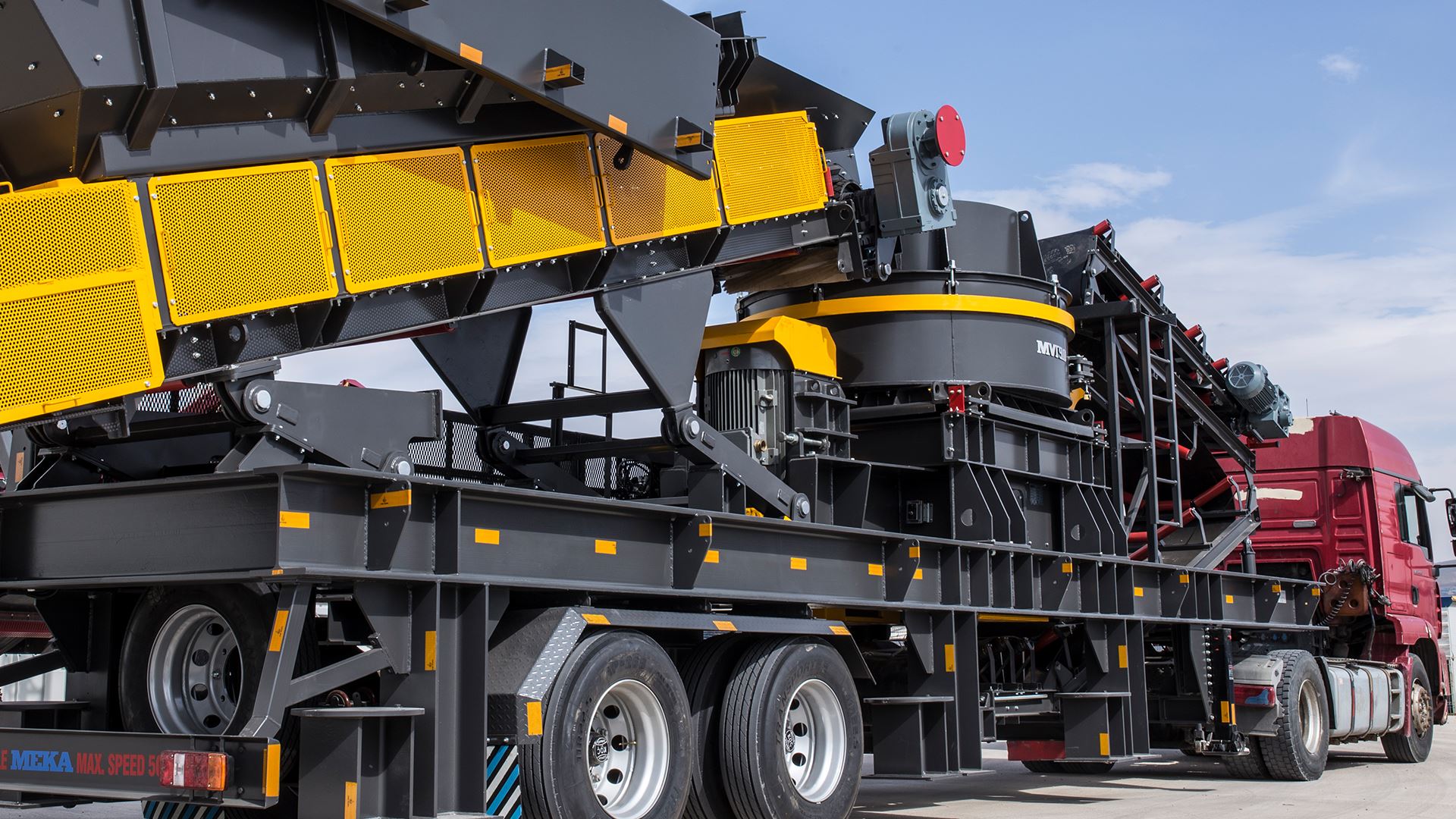

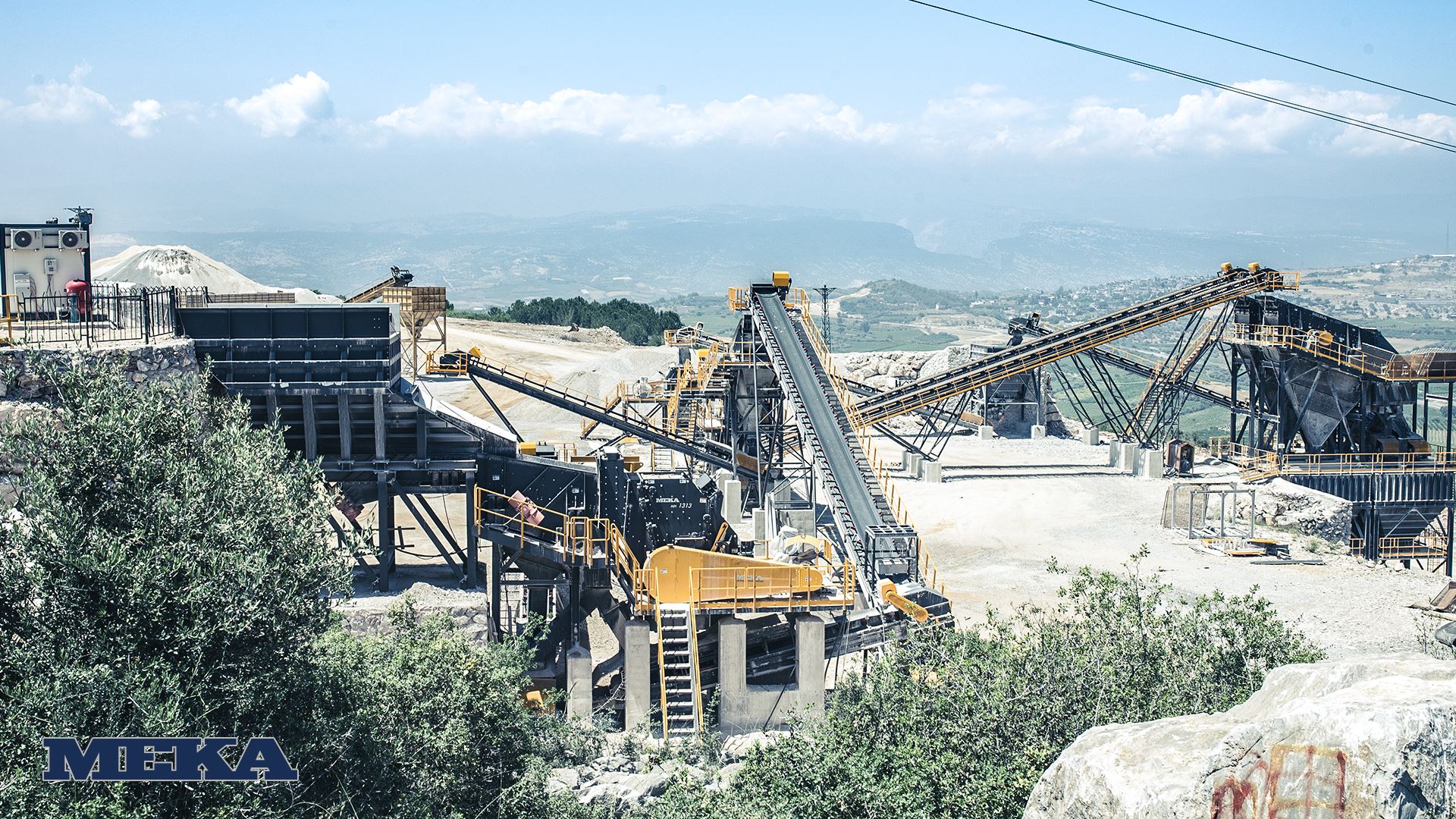

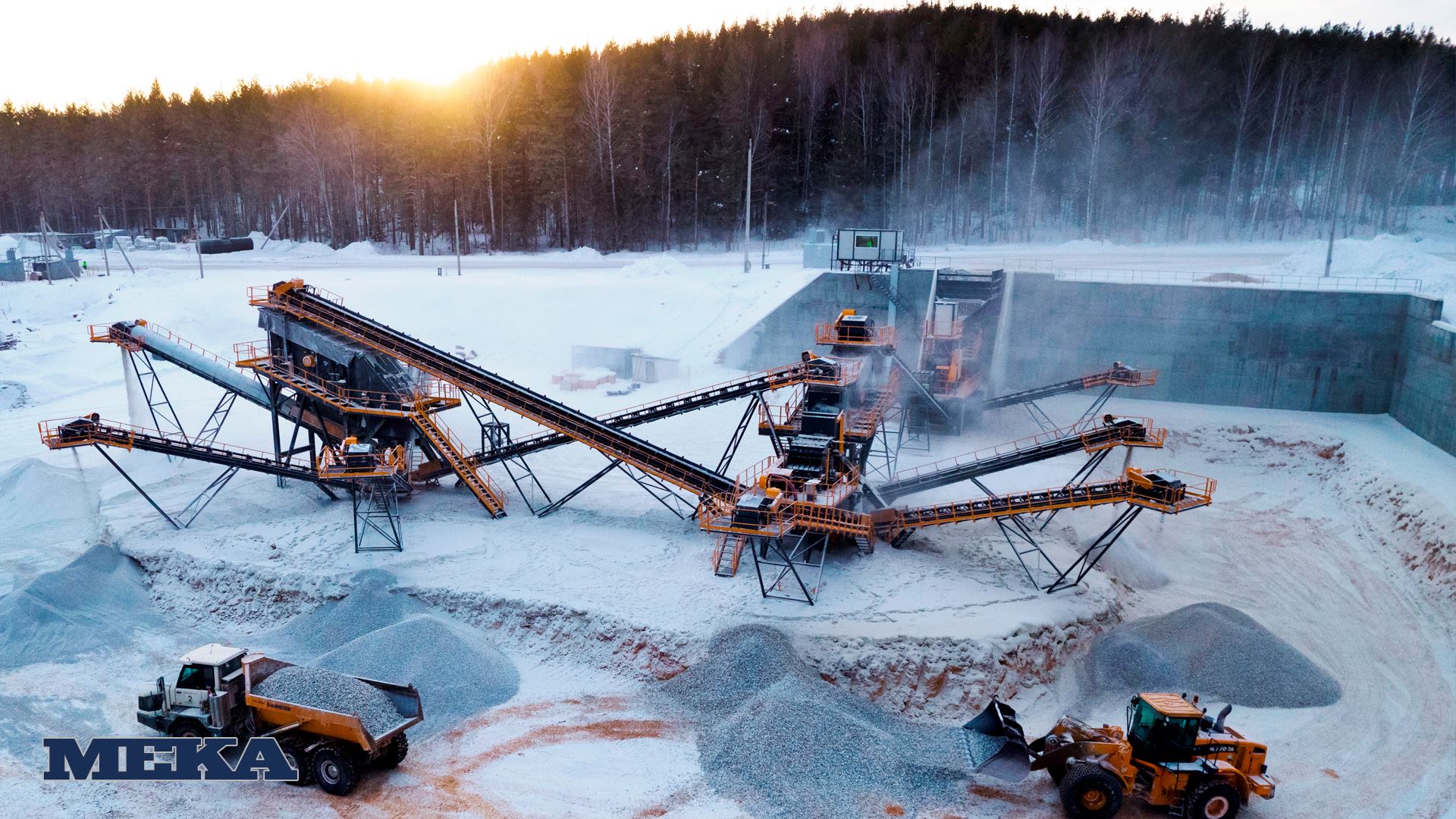

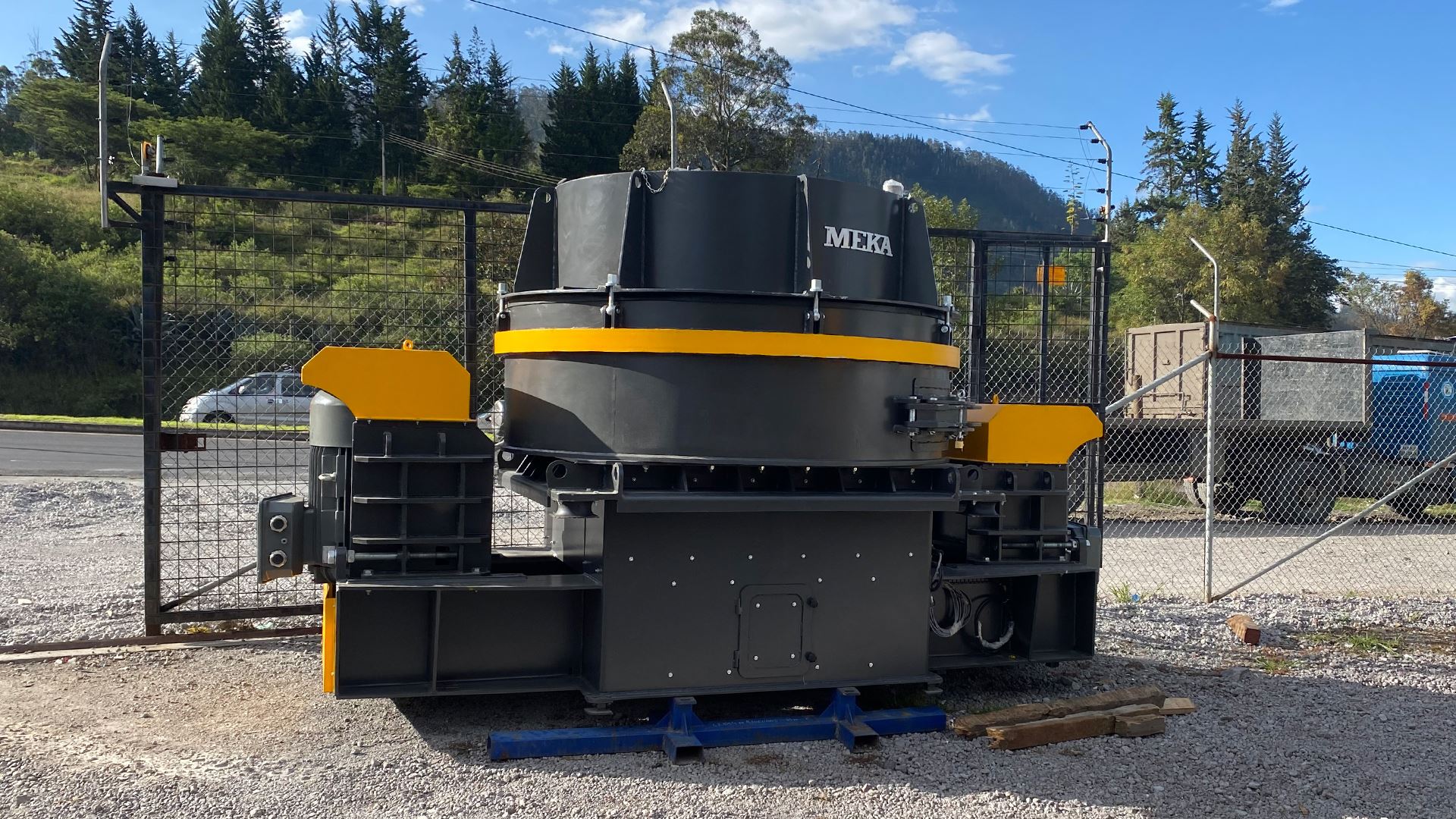

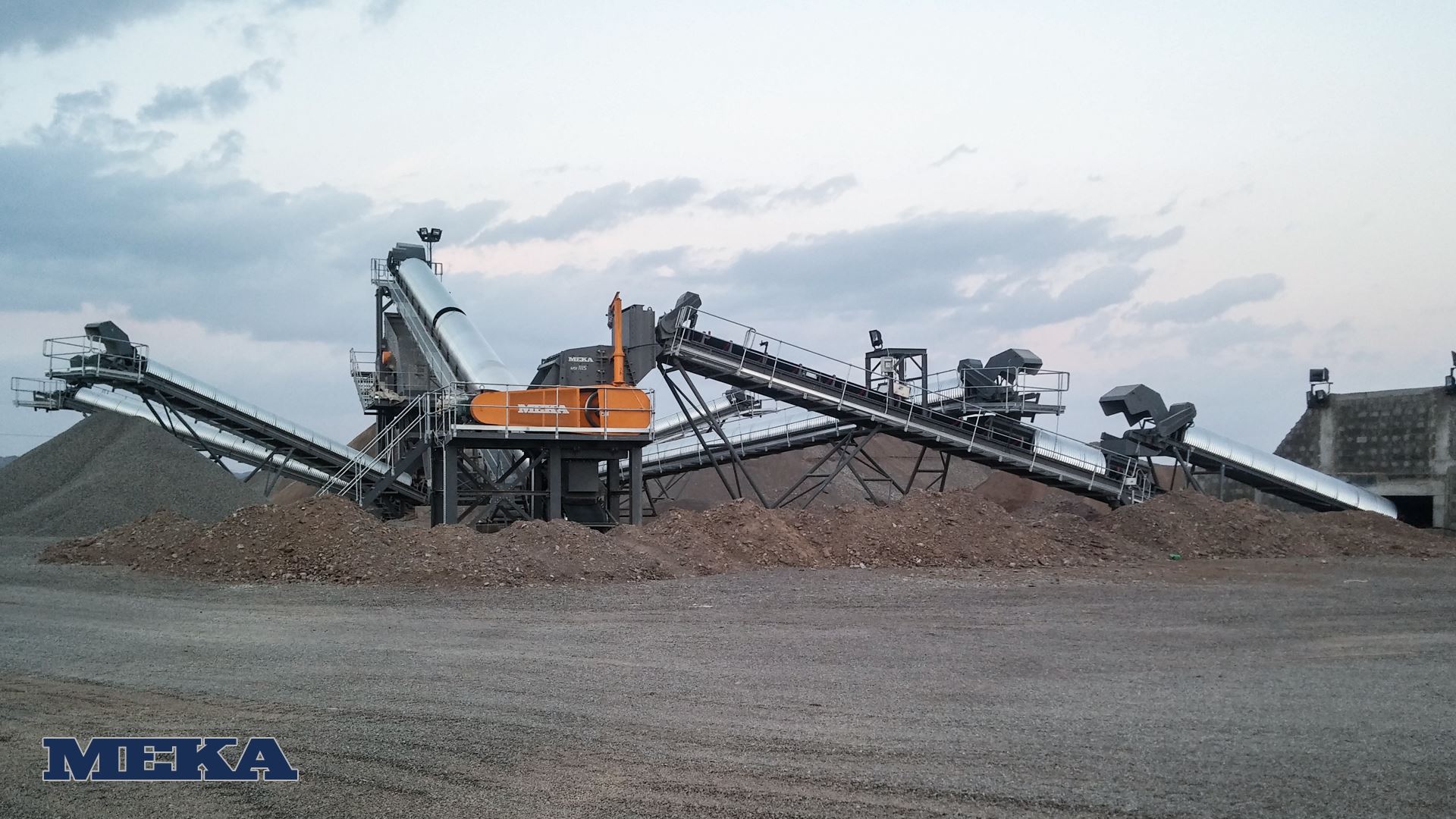

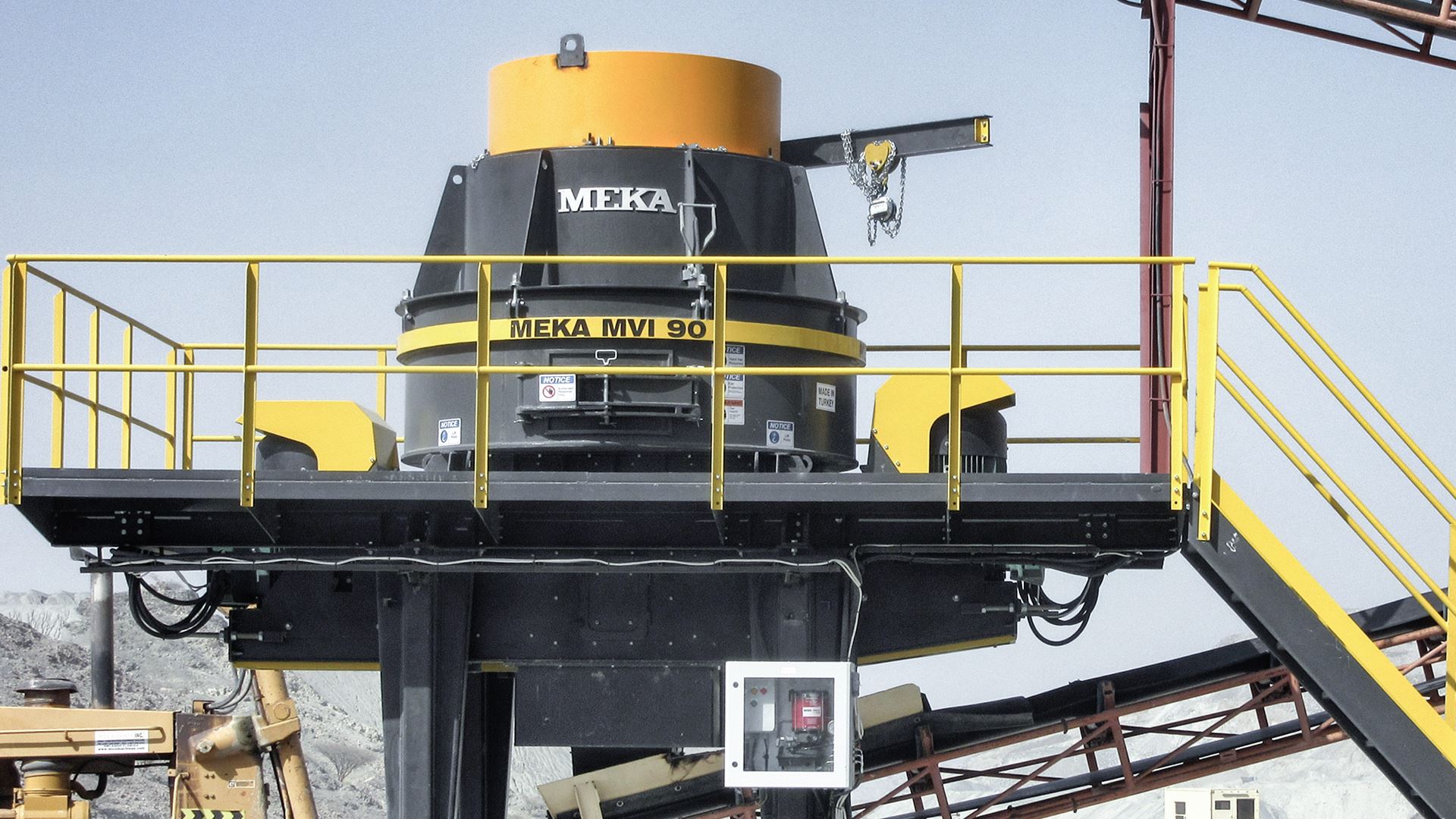

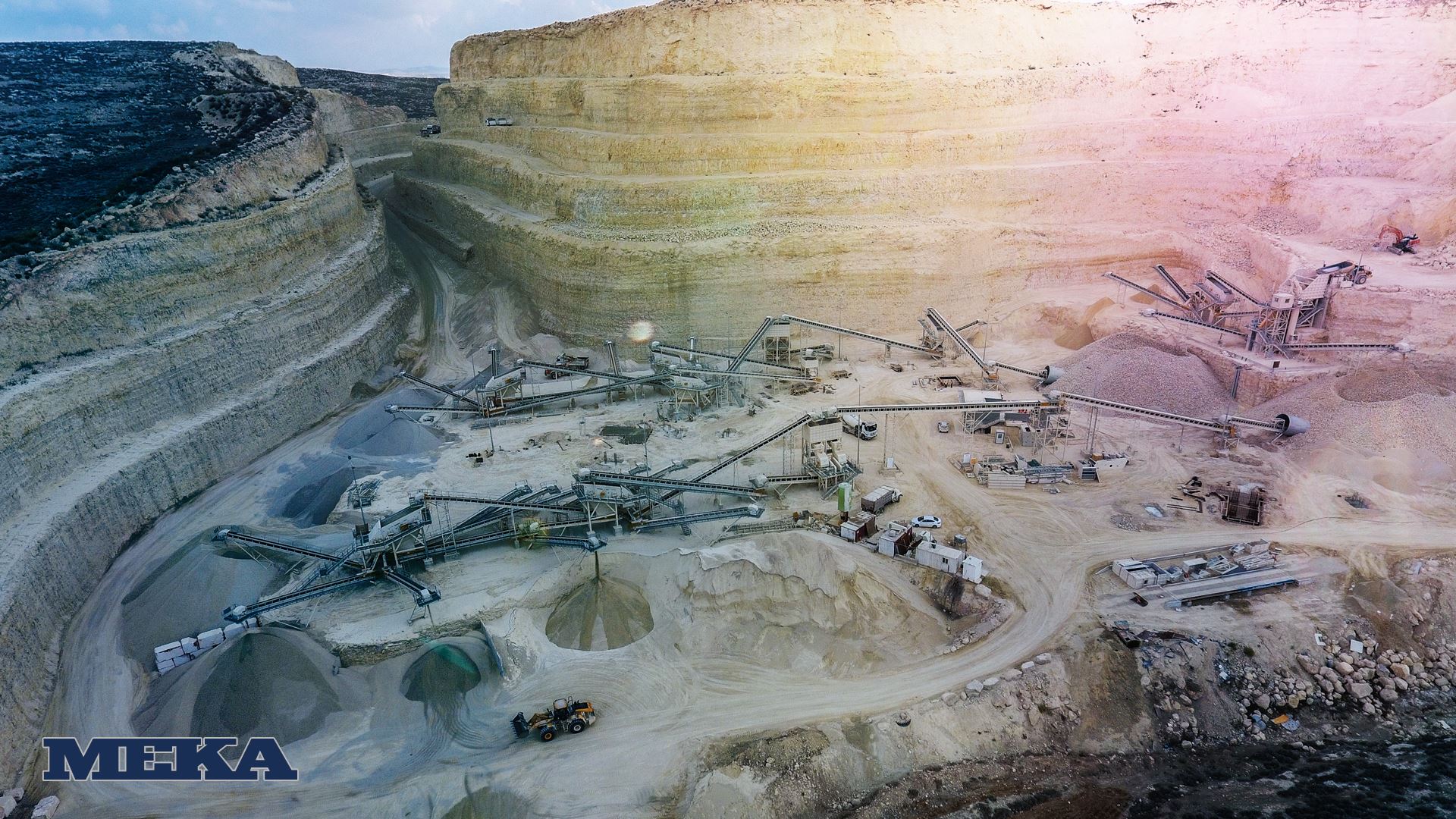

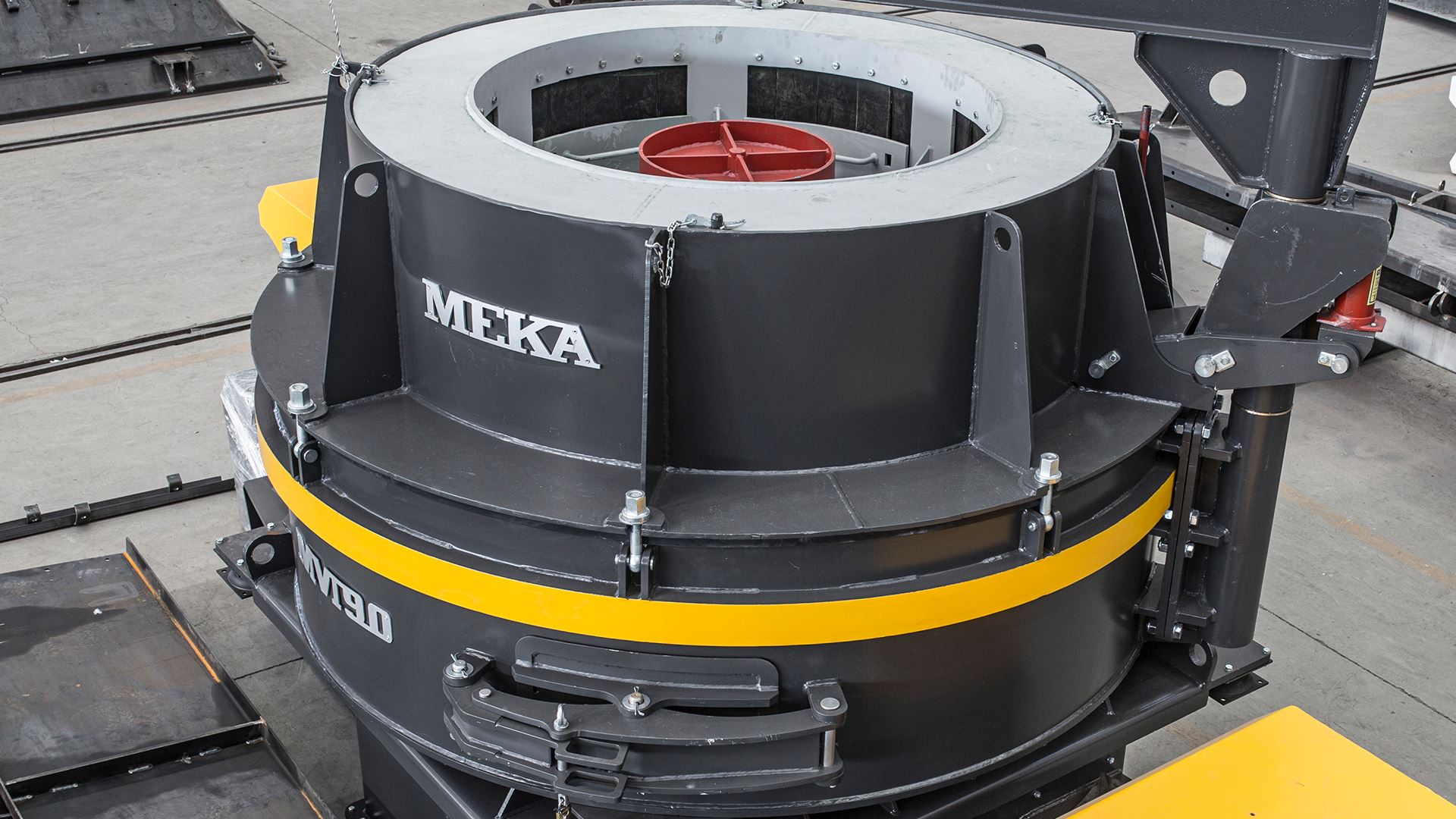

VERTICAL SHAFT IMPACT CRUSHER - G MODEL / GALLERY
