INCLINED SCREEN
The screening process is just as important as the crushing itself. Are the heart of every rock processing plant. They are used to classify materials both in different stages of the crushing process and in final product separation. Designed as a non-welded frame with adjustable vibration features for different material types and sizes, MEKA inclined provide efficiency that is both high quality and dependable. Our inclined come in various sizes starting from 2 m² up to 16 m² and are equipped with up to four decks that can be supplied with different types of media, such as grizzly, perforated sheet, polyurethane and steel with washing options to meet the requirements of a wide range of applications.

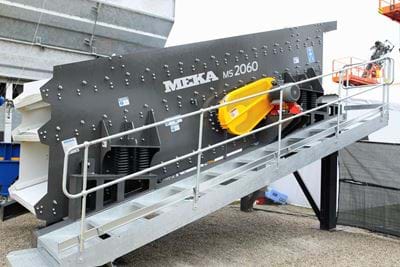

Every MS series inclined is made of high-tensile heat-treated side plates that are resistant to vibration, allowing our customers to use them long-term with the same durability as during first use. With this steel plate’s durability, the body becomes more tolerant and resistant to vibration.
In this way, our innovations prevent fractures that commonly occur on other , particularly around the drive system. Such fractures make the unusable by expanding on the side plate.

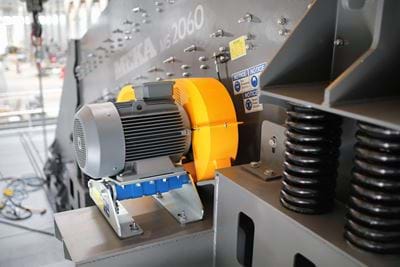

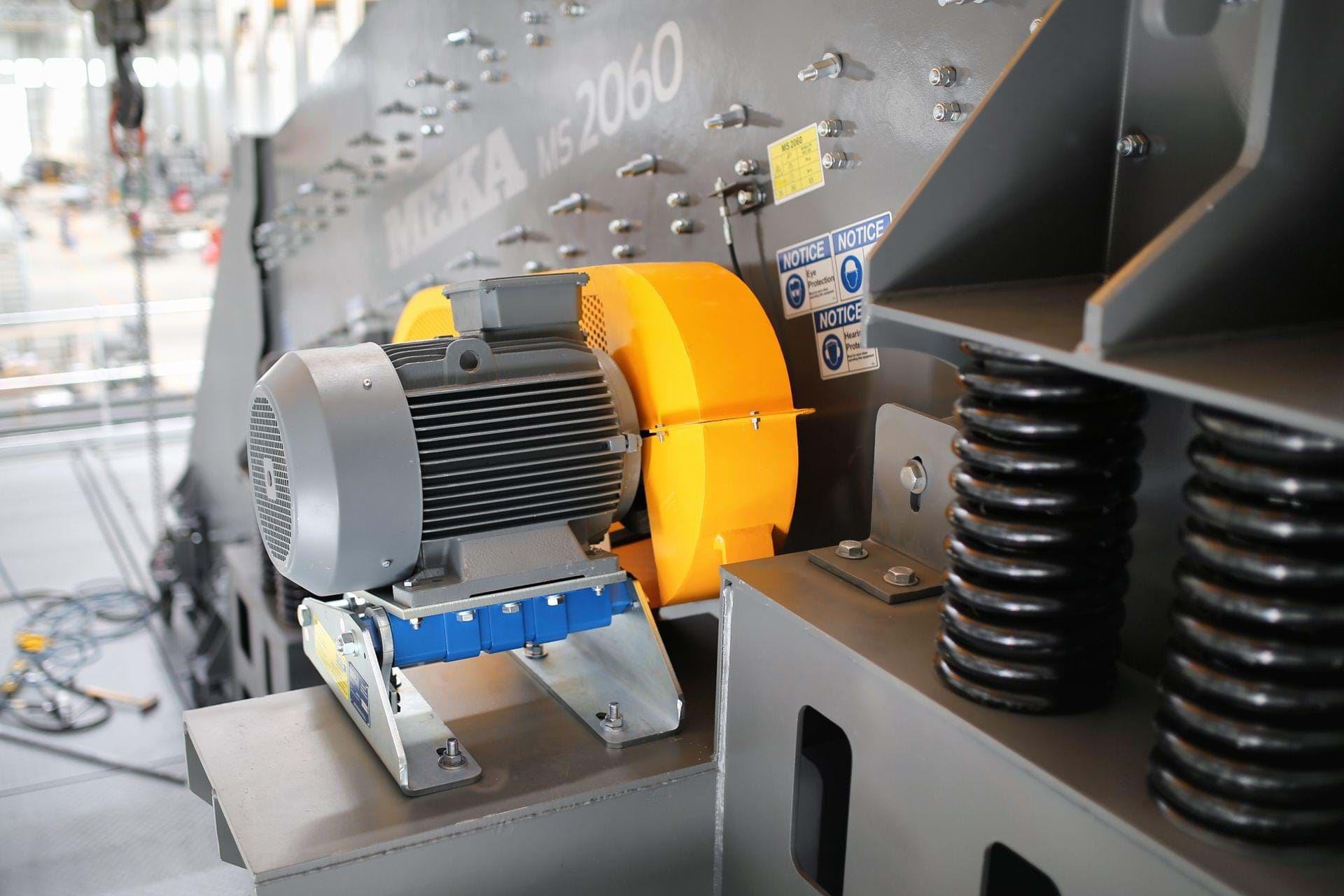

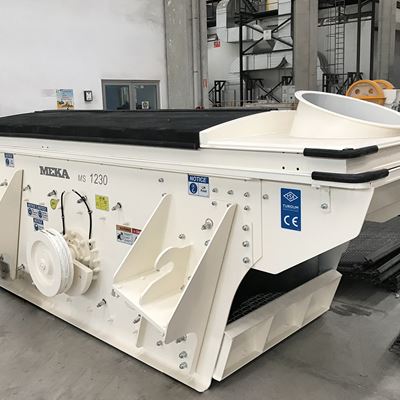

In MS series inclined a self-tensioned motorbase is a standard feature to protect both the electric motor and drive belts against tension caused by vibrations, meaning less maintenance duration and lower costs for our customers.

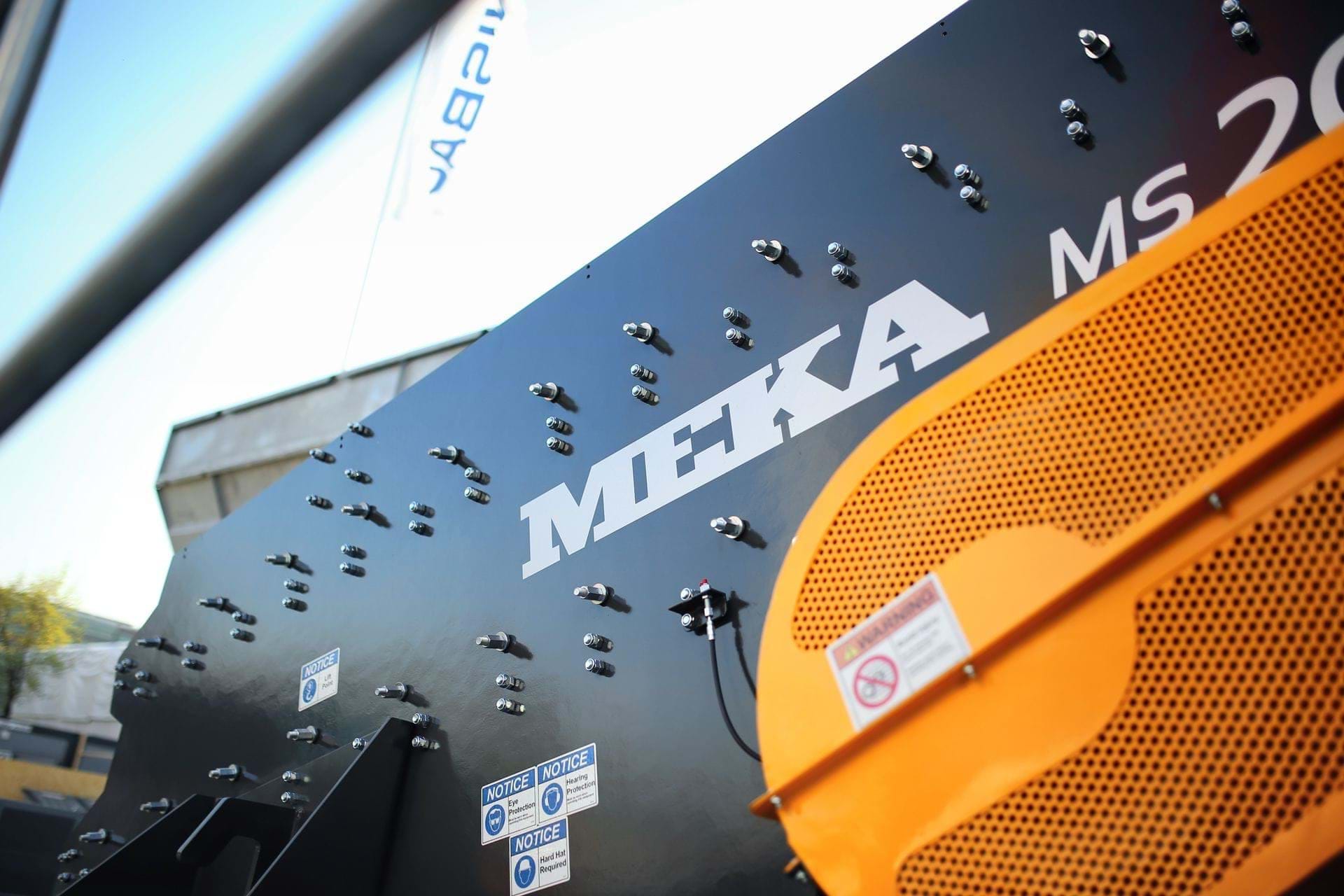

Bodies with a conventional bolted assembly create extra labour costs, increase security risks and reduce overall profitability because of the rupture of bolts caused by loosening nuts. MEKA’s MS series inclined with huck-bolted assembly don’t require maintenance for bolts and nuts, so they also ensure workplace security.

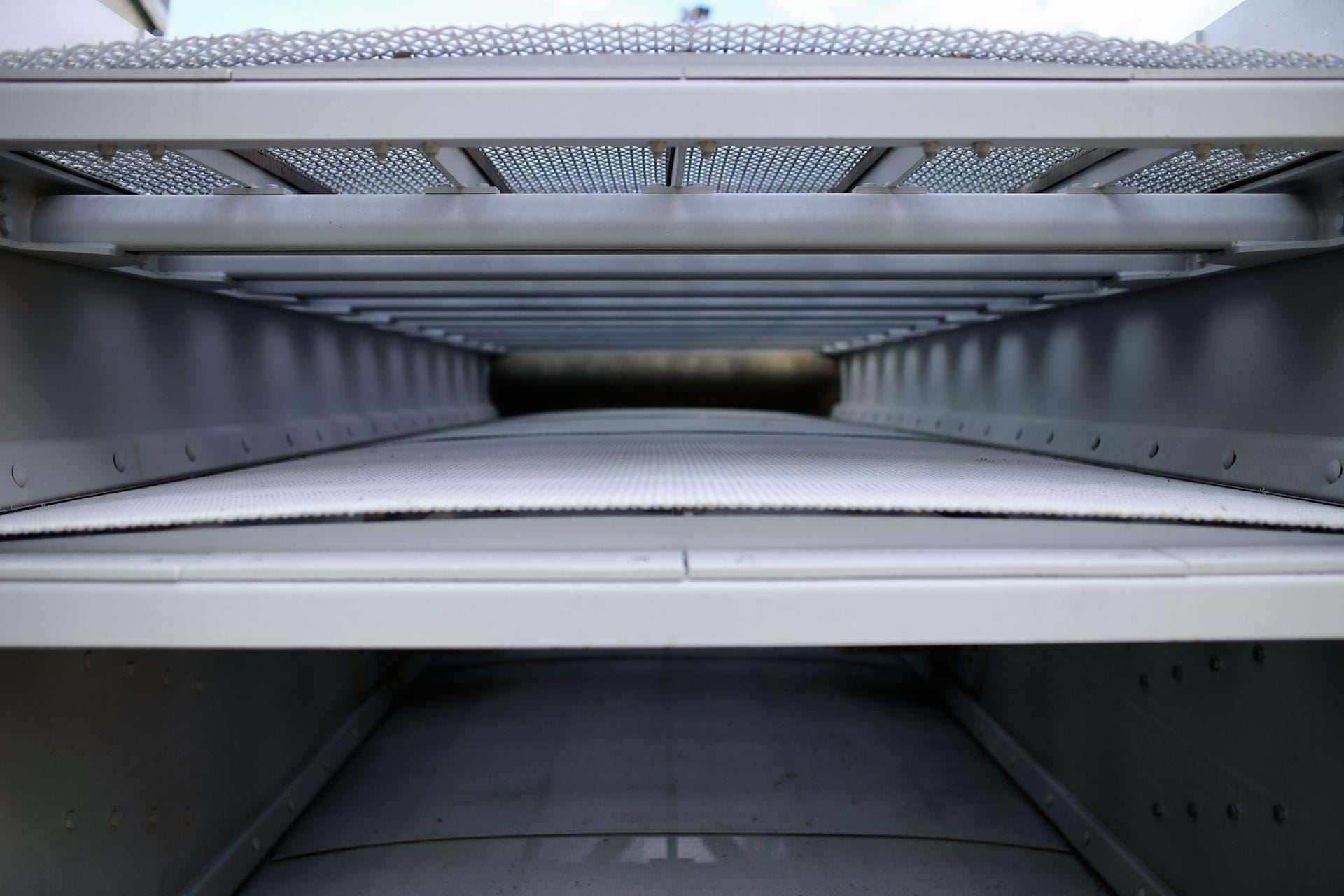

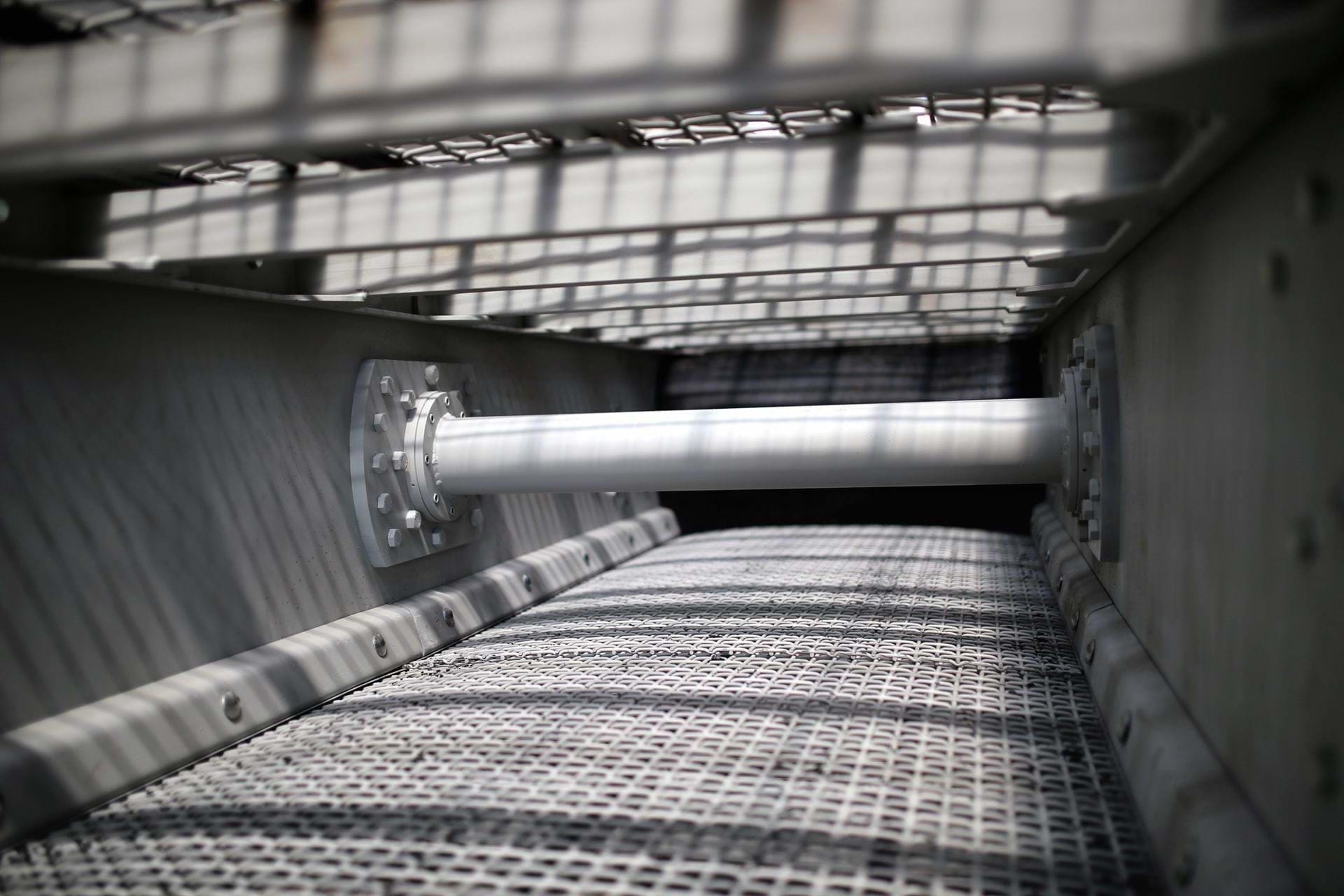

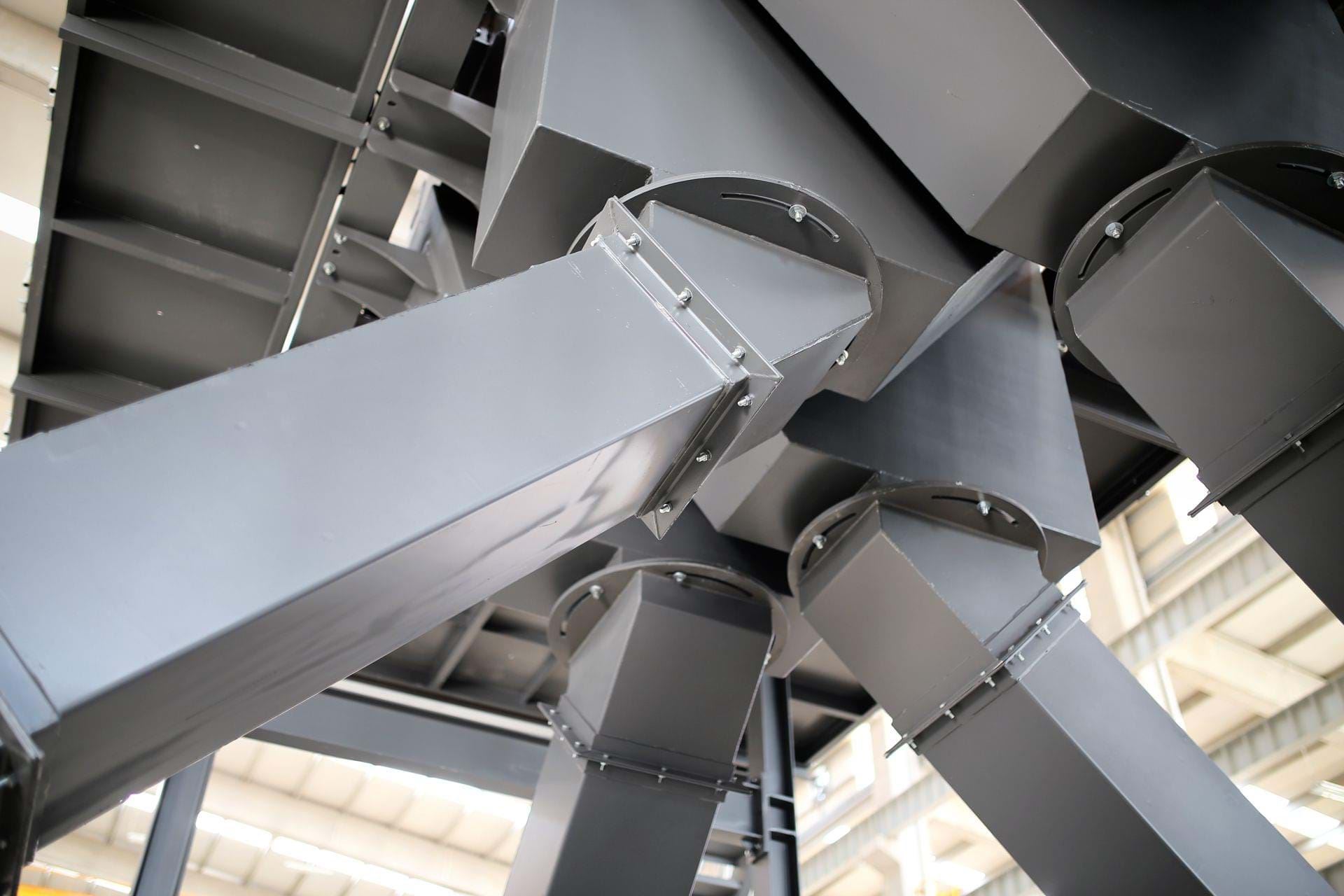

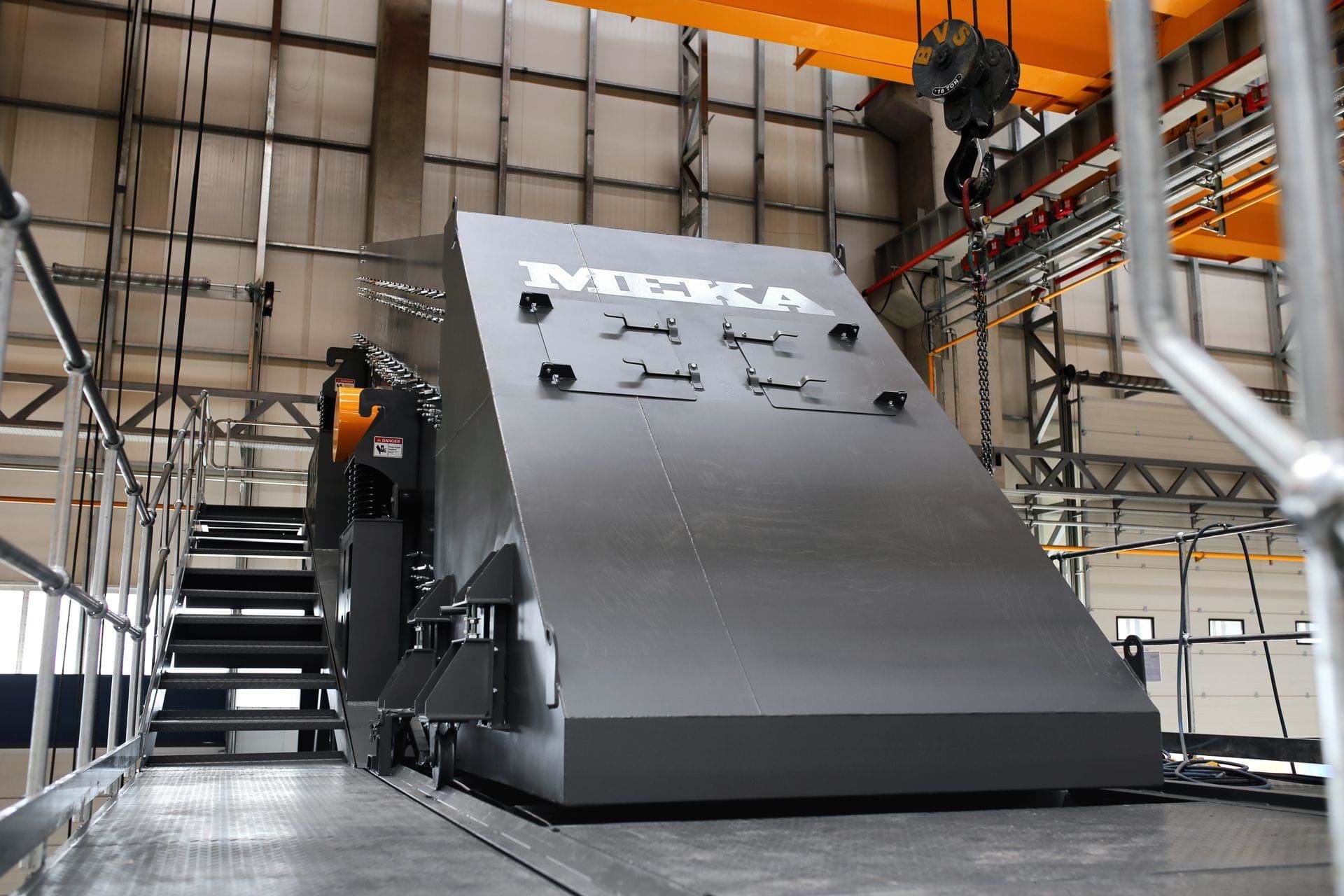

Mesh is one of the most frequently replaced wearing part on inclined . To simplify the maintenance process and reduce downtime, we designed front chutes with sliders for inclined bigger than 8 m² so the front chute can be moved without using any lifting equipment. This provides easy access to the media for maintenance in just a few minutes.

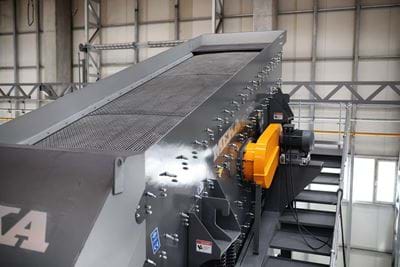

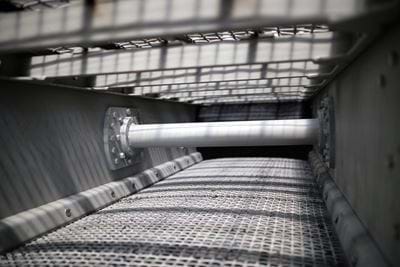

Meka MS series are equipped with a modular-type drive system for easy servicing. The two-piece drive-shaft system can be detached easily one by one, reducing servicing duration. Additionally, the cardan shaft connecting the modular shafts is more advantageous than traditional heavier and single-piece shafts in terms of easy maintenance.
TECHNICAL SPECIFICATIONS
Have a look at our range of with detailed technical data below. Feel free to contact us if you require more specific information or a unique solution for your needs. Our engineers will be happy to assist with your project.
INCLINED SCREENS TECHNICAL SPECIFICATIONS
MS 1240 |
MS 1540 |

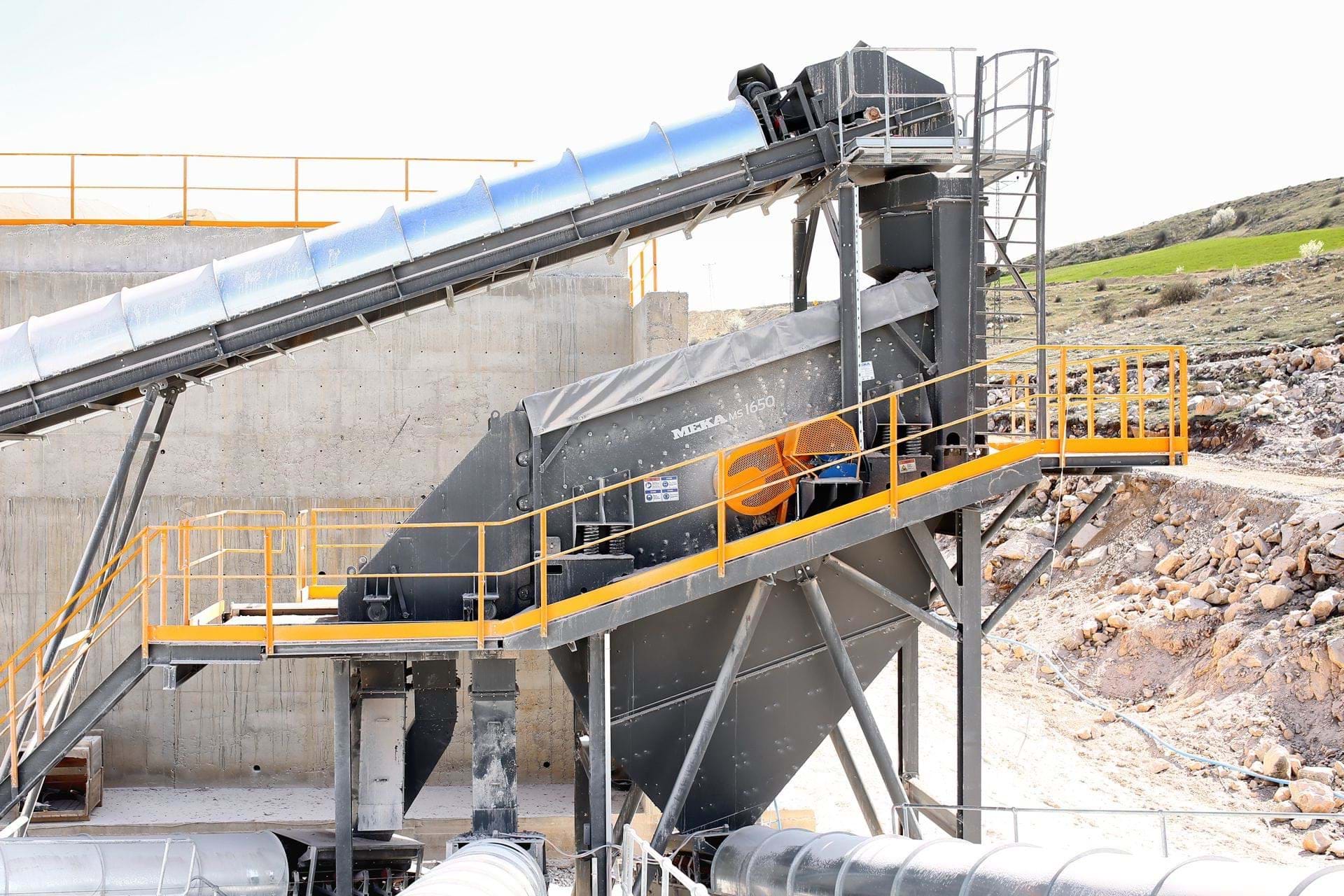

MS 1650 |
MS 2050 |

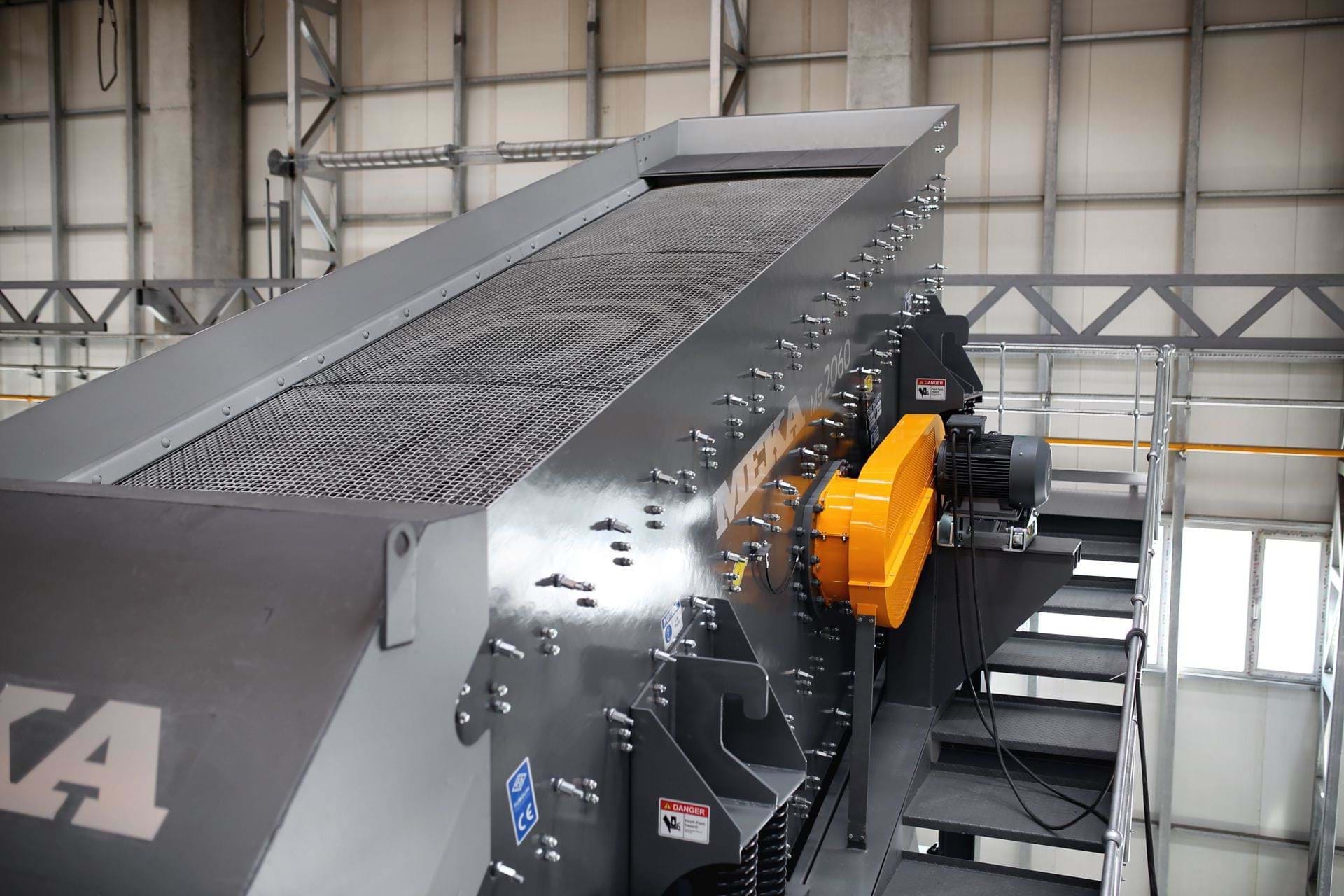

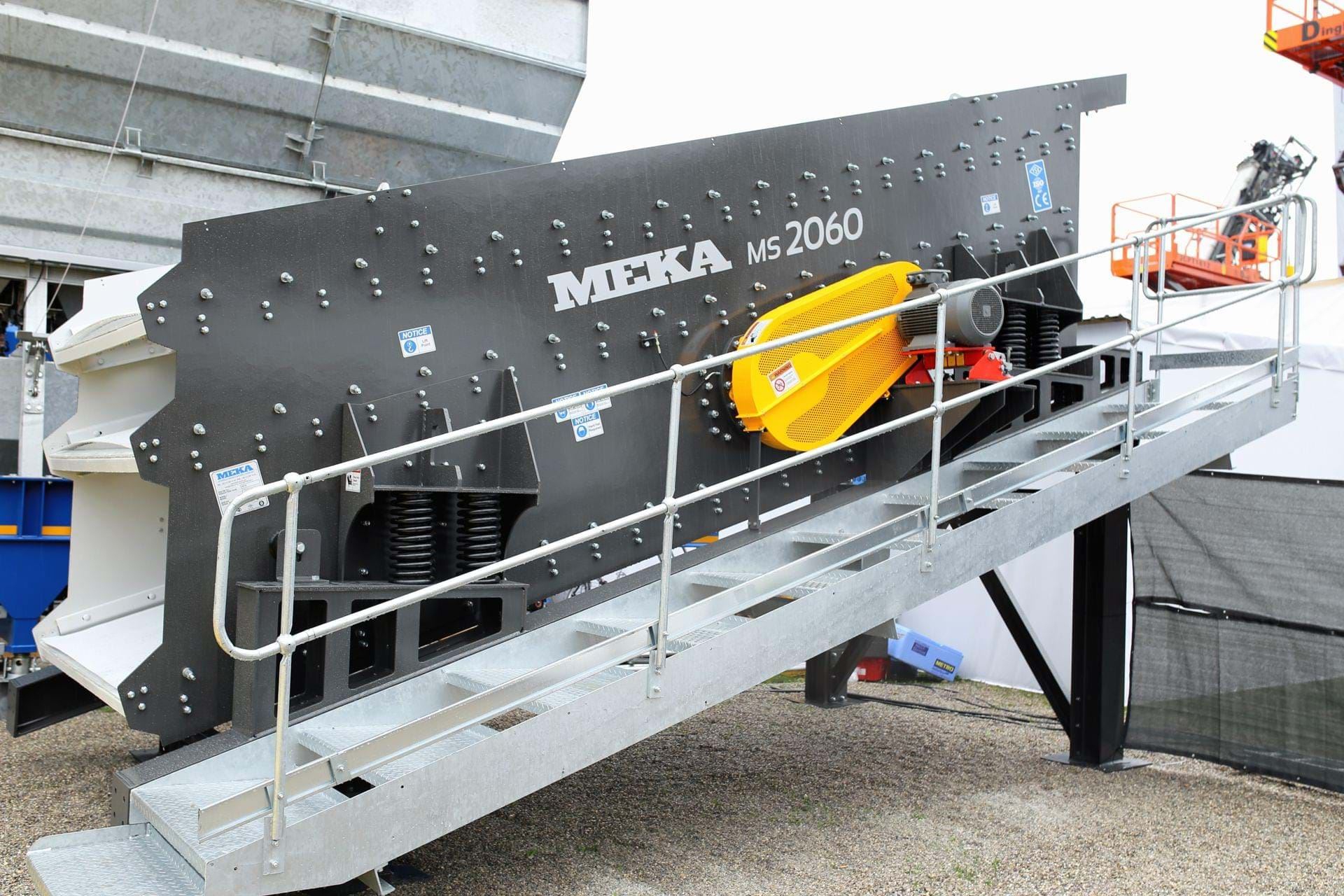

MS 2060 |

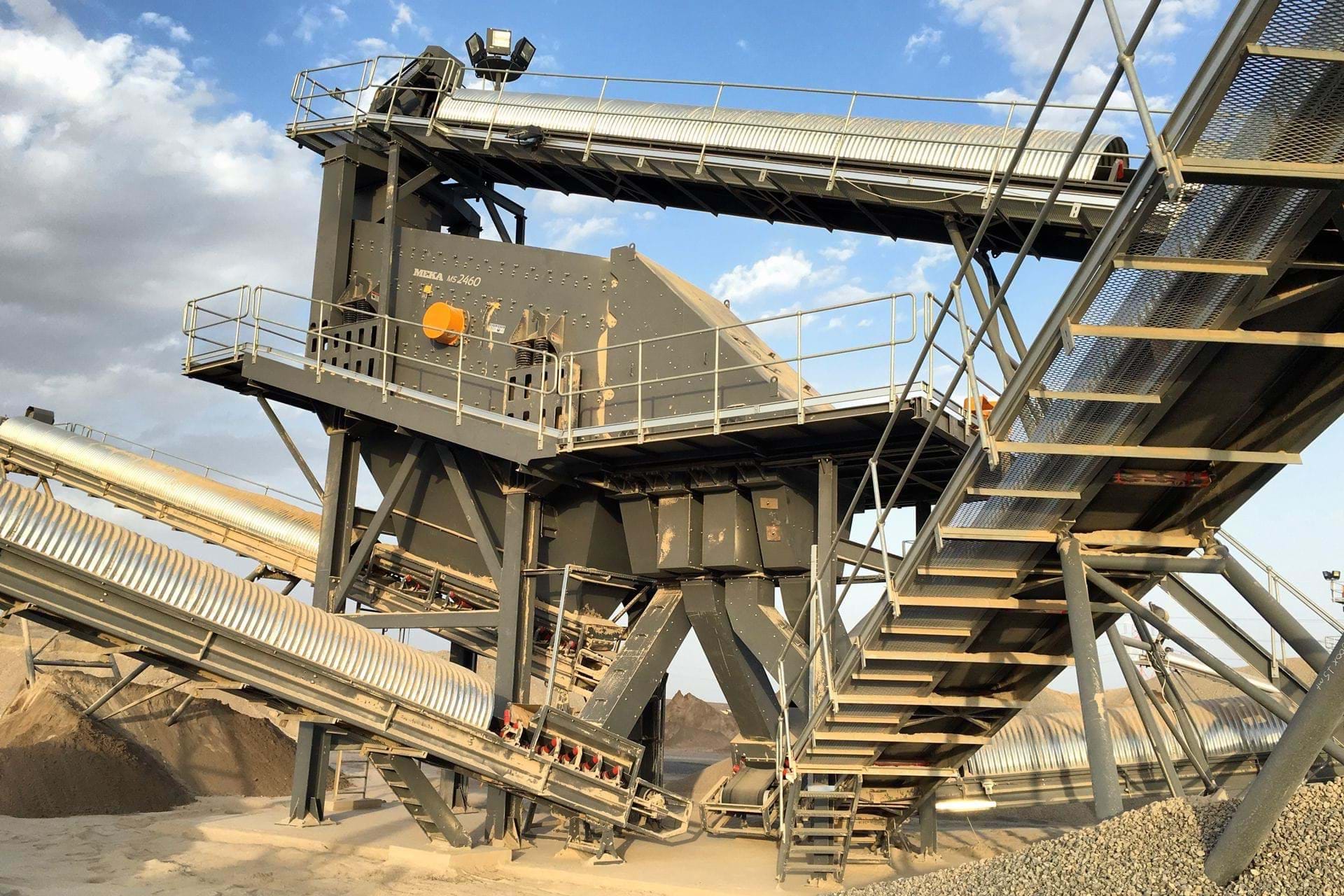

MS 2460 |
MS 2563 |
|
| Dimensions (mm) | 1200x4000 | 1500x4000 | 1600x5000 | 2000x5000 | 2000x6000 | 2400x6000 | 2500x6300 |
| Number of Decks | 2,3,4 | 2,3,4 | 2,3,4 | 2,3,4 | 2,3,4 | 2,3,4 | 2,3,4 |
| Power (kW) | 7.5 | 15 | 15 | 18.5 | 22 | 30 | 37 |
