MFW Series

Fine Washers

Efficient Separation, In-Spec Product
    1. Home Page
    2. Crushing & Screening Plants
    3. Wet Processing
    4. Fine Material Washers

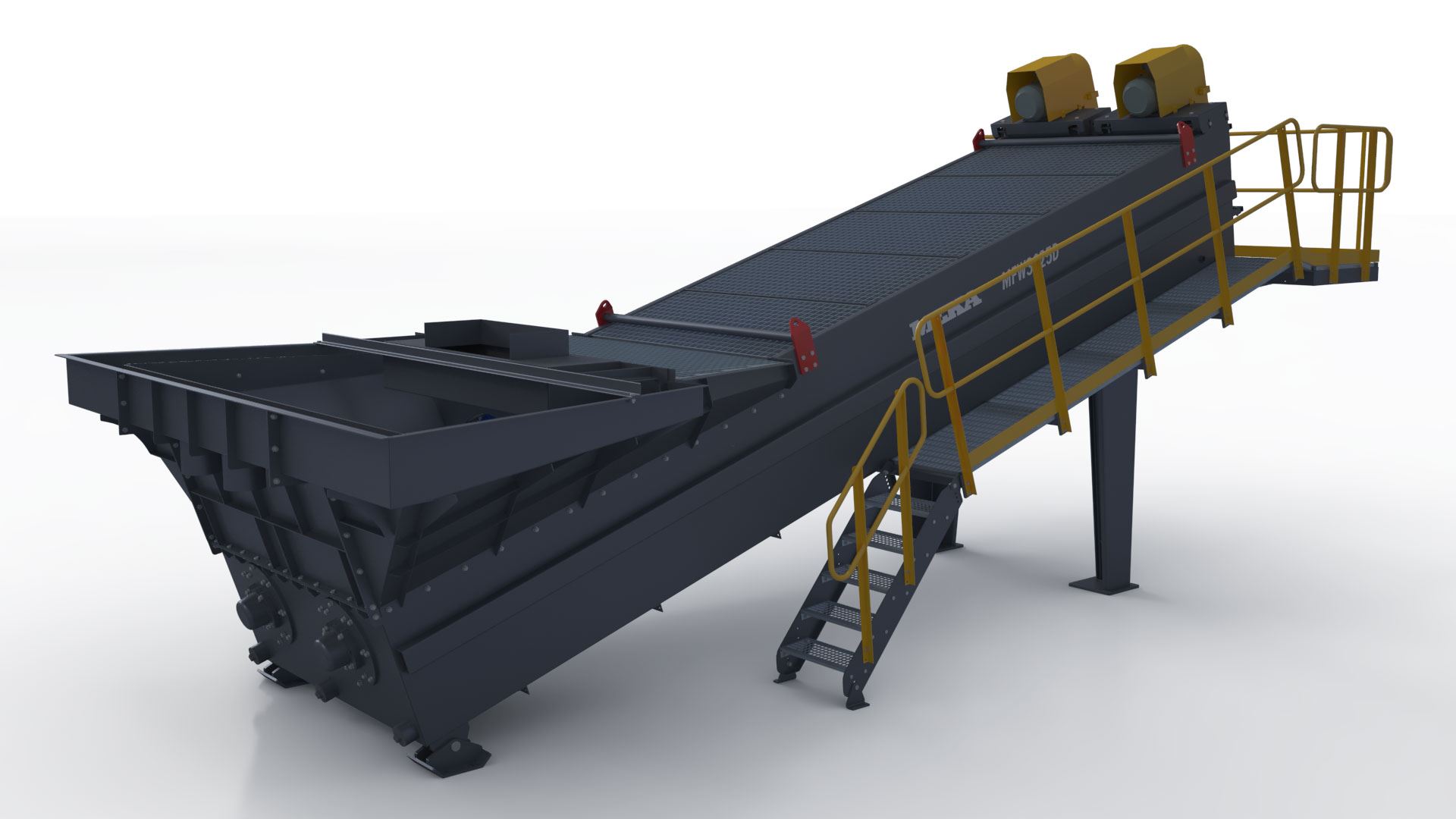

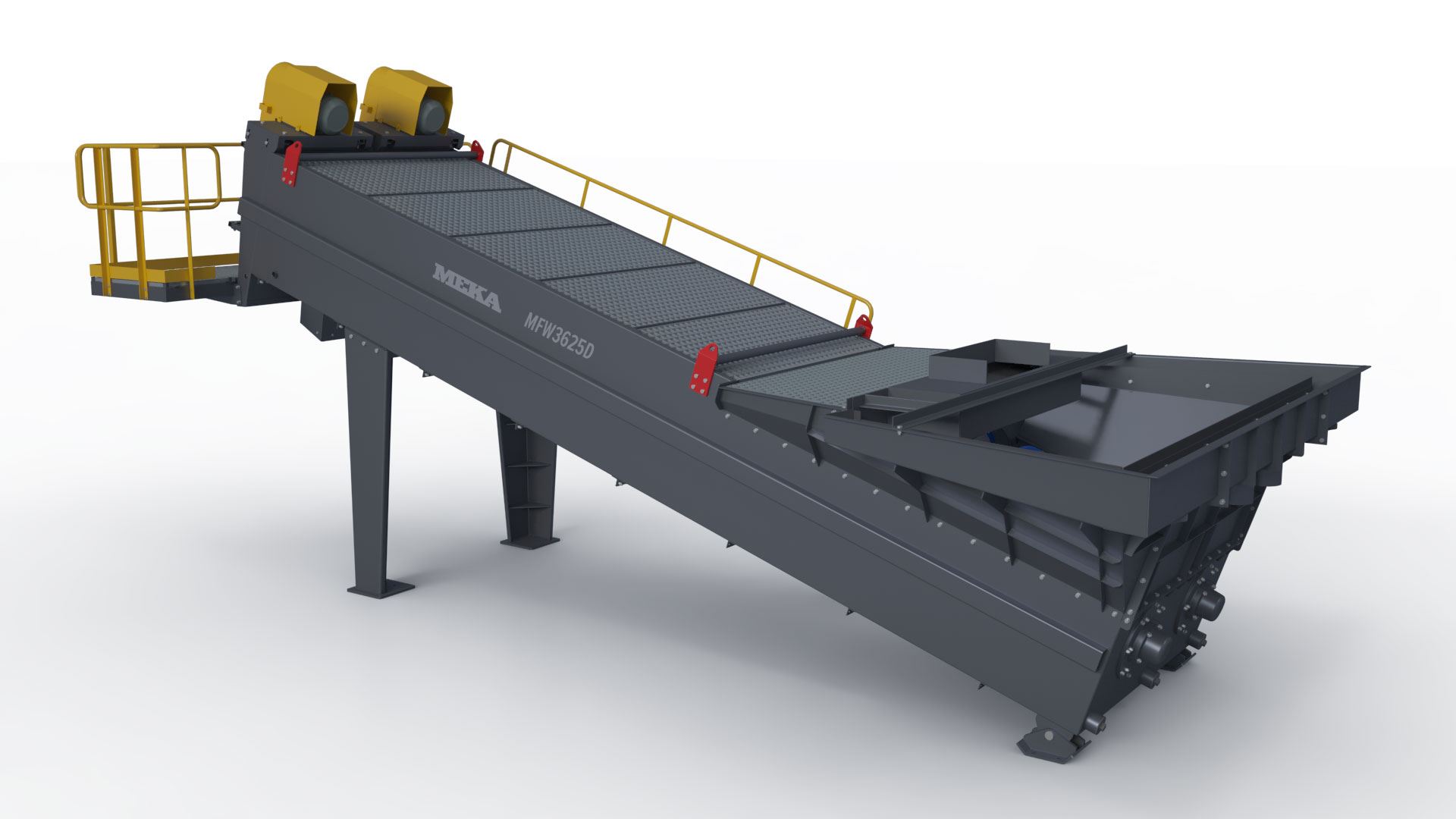

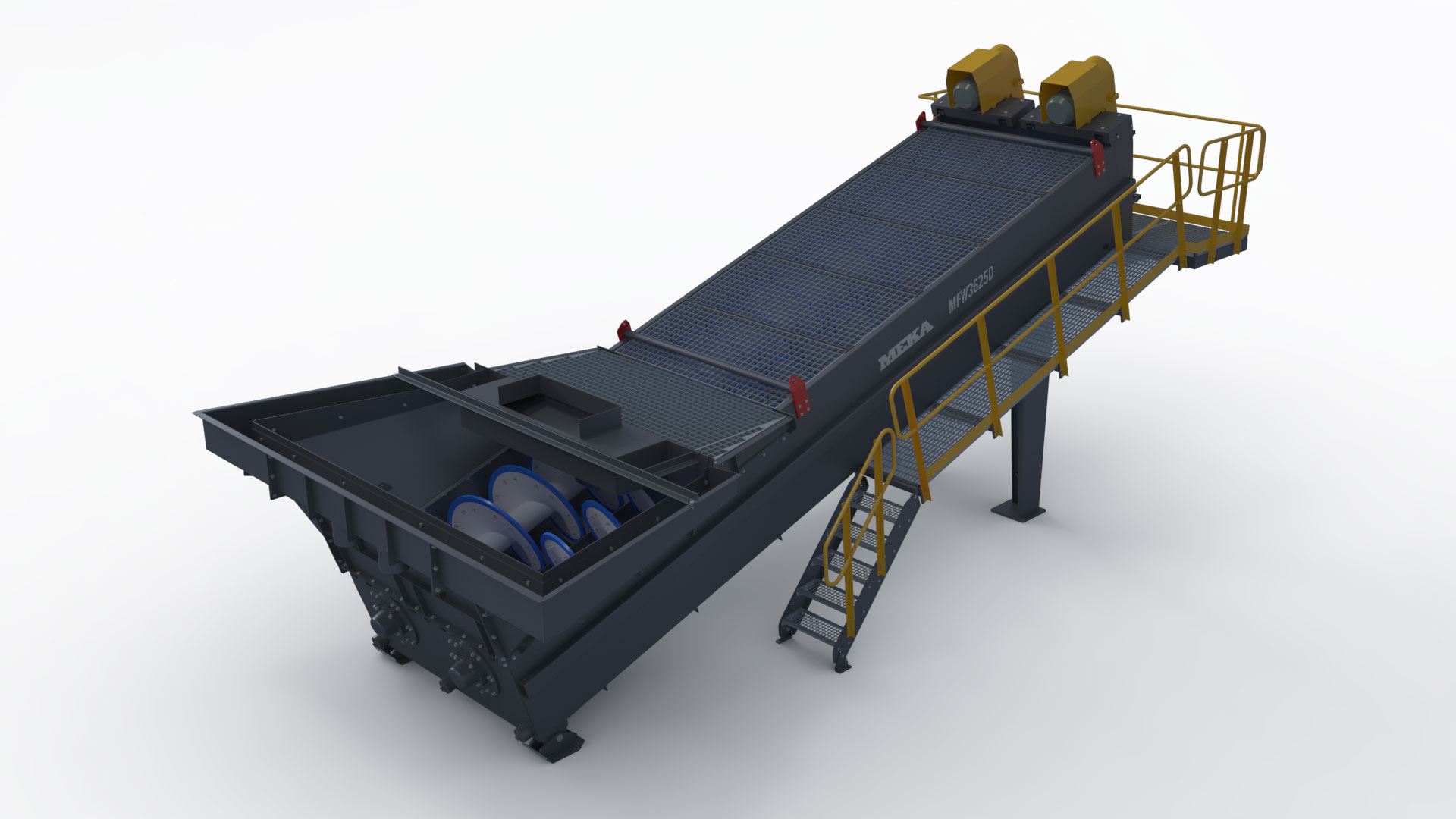

MEKA Fine Material Washers are accomplished by hydraulic separation; using water to clean and classify by weight. Larger particles (Sand) weigh more so they sink and are collected in the bottom of the trough. They are discharged by steel spiral shaft with replaceable polyurethane or cast steel linings. The smaller lighter unwanted particles are floated to the surface and discharged over the weirs at the lower end of the machine.

APPLICATIONS
Utilized to clean and dewater fine aggregates typically minus 12 mm or 5 mm (1/2’’ or 4mesh) to fine tune end
products to meet specifications and to separate water soluble clay, silt, and micro sized fine particles. Available in both single and twin screw configurations, fine material washers are most often used after a wet screening operation to process products such asconcrete, mason, mortar.

WHY MEKA FINE MATERIAL WASHER?
•    Maximum productivity
Capable to produce up to 725 mtph (800 stph) delivering extreme productivity where you need it most.

•    Can classify material up to 50 mesh (300 microns)
Large pool area provides maximum fines retention resulting in a more marketable product.

•    Very low energy consumption
Engineered with high efficiency drives,the resulting low power requirement reduces operating costs while increasing throughput.

•    Very low operation costs
Heavy duty steel plate construction provides years of operation


HIGHLIGHTS
•    Large pool area for more fines retention
•    Rising current for better cleanliness
•    Adjustable O/F Weir for fine Tuning
•    Choice of PU or NiHard Liners
•    Adjustable speed for drier product

FINE MATERIAL WASHERS / TECHNICAL SPECIFICATIONS

MFW 3625S

MFW 3625D

MFW 4432S

MFW 4432D

MFW 5434S

MFW 5434D

MFW 6635S

MFW 6635D

(Single Screw) (Single Screw) (Double Screw) (Double Screw) (Single Screw) (Single Screw) (Double Screw) (Double Screw) (Single Screw) (Single Screw) (Double Screw) (Double Screw) (Single Screw) (Single Screw) (Double Screw) (Double Screw)
Diameter x Length (mm) Diameter x Length (inchxfeet) 917x7620 36x25 917x7620 36x25 1120x9700 44x32 1120x9700 44x32 1370x10300 54x34 1370x10300 54x34 1675x10500 66x35 1675x10500 66x35
Capacity (mtph) Capacity (stph) 20-90 25-100 45-180 50-200 35-160 40-175 70-315 80-350 60-250 70-275 125-500 140-550 90-360 100-400 180-725 200-800
Material Size (mm) Material Size (inch) 0-10 3/8" 0-10 3/8" 0-10 3/8" 0-10 3/8" 0-10 3/8" 0-10 3/8" 0-10 3/8" 0-10 3/8"
Power (kW) Power (HP) 15 20 2x15 2x20 18,5 25 18,5x2 2x25 30 40 2x30 2x40 45 60 2x45 2x60
Screw (rpm) Screw (rpm) 10-21 10-21 10-21 10-21 8-17 8-17 8-17 8-17 7-14 7-14 7-14 7-14 5-11 5-11 5-11 5-11
Weight (kg) Weight (lb) 6500 14333 11700 25799 10500 23153 18850 41566 13950 30761 25000 55127 22000 48512 40250 88754
Water-150 Mesh (gpm) Water-150 Mesh (m3/h) 320 73 640 146 760 173 1440 328 930 212 1750 398 1150 262 2100 478
Water-200 Mesh (gpm) Water-200 Mesh (m3/h) 180 41 360 82 460 105 810 184 575 131 935 213 650 148 1095 249
* For material weighing 1.6 t/m³ or 100 lbs/ft³.Capacity values are indicative only, crusher performance may vary depending on the feed gradation, feed moisture content, crushability of the material, crusher rpm, installed power and the crushing circuit design.  ** Weights shown do not include drive motor package, support legs, maintenance platform, inlet and outlet chutes.
