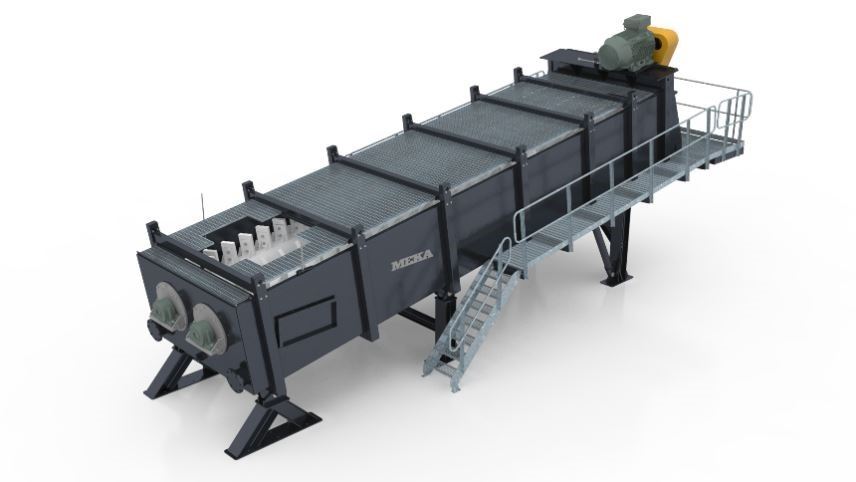

LOG WASHER

Log washwer can be called as, effective washing way of natural and crushed materials.

Log washers are very high energy units designed to disintegrate tough clay particles. With longer wash tubs they provide significantly increased retention time. Retention can further be increased by switching to straight paddle design and higher working angles. Log washers are provided with spray bars to make a final rinse before the product leaves the wash box.

Logwashers works on base of rotating two intermeshing shafts. Shafts are dressed with abrasion resistant, corrugated paddles, timed with a dual output gearbox work together to scrub faces of rocks to remove sticky clays over the faces of rocks and crush softer clays and agglomerated particles to remove them with the reverse current flow. As rocks flow through the washing tub they are beaten repeatedly by the paddles to provide thoroughly clean end-product.

Log Washers can accept feed up to 150mm sphere particles. With different length units, optional straight paddle design and possibility to increase working angle retention time can be changed to meet process requirements.

Log Washers are designed to produce valuable products from what was once called rejects. They scrub the faces of rocks, break down plastic clays and produce a material that is clean and easy to process.

Features

• Replaceable NI-HARD paddles
• Structurally strengthened TUB Design.
• Extremely thick & machined , once piece shafts are designed to stand for the test of time.
• Gearbox specifically designed for Log Washer units overcome extreme shock loads. It also locks both shafts to their positions, precisely controlling their timing.
• Adjustable tub inclination in order to fulfill different Ievel washing processes.
• Outboard Bearing Assembly
