Penta Company Turned to MEKA for a new Multi-Product Aggregates Crushing and Screening Plant in Uganda

A DEPENDABLE SOLUTION PARTNER

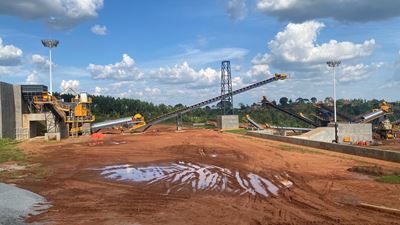

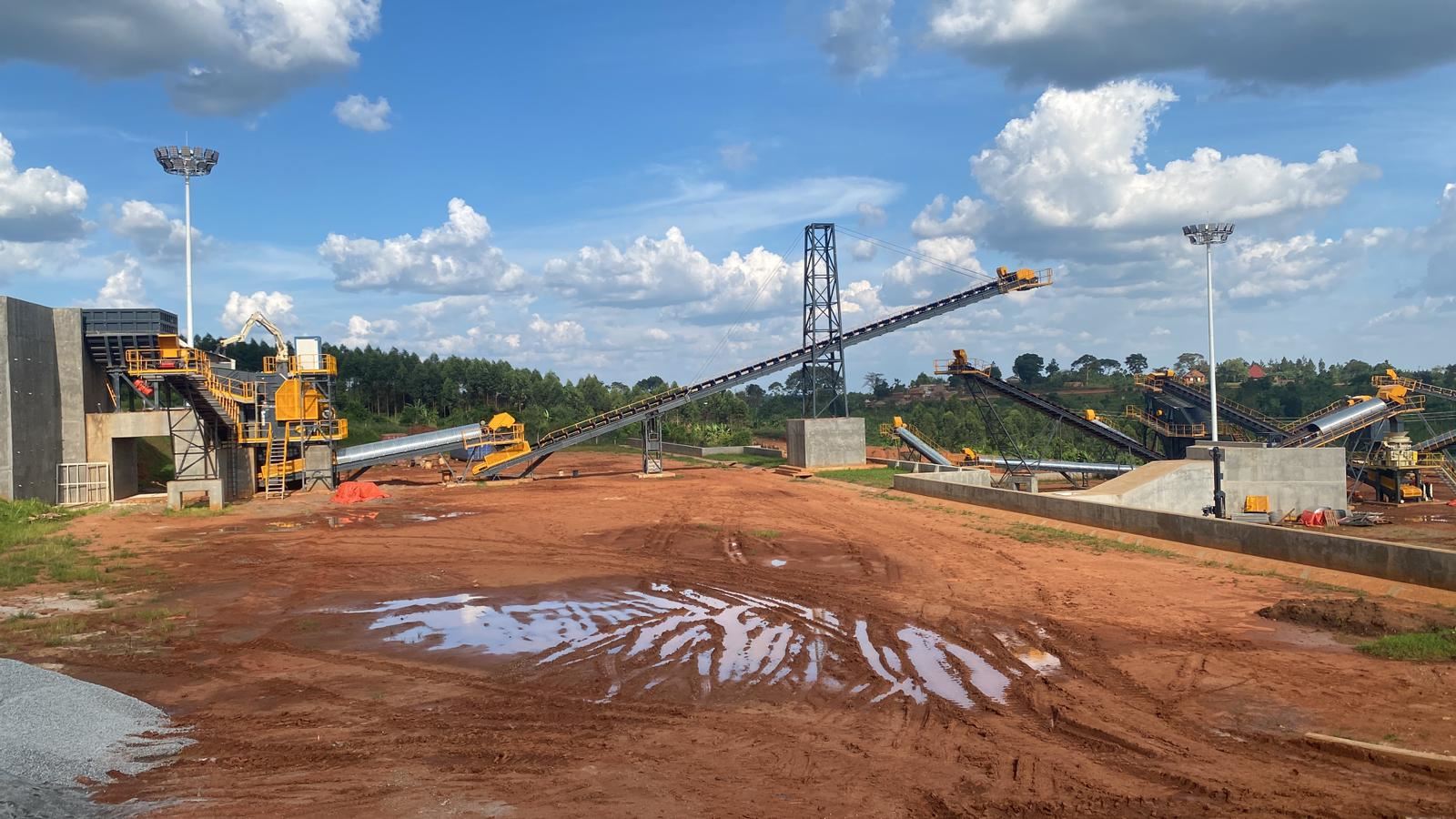

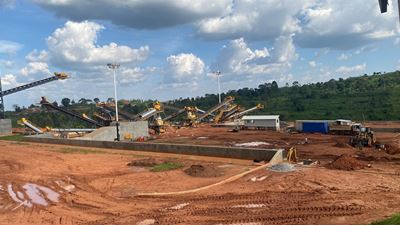

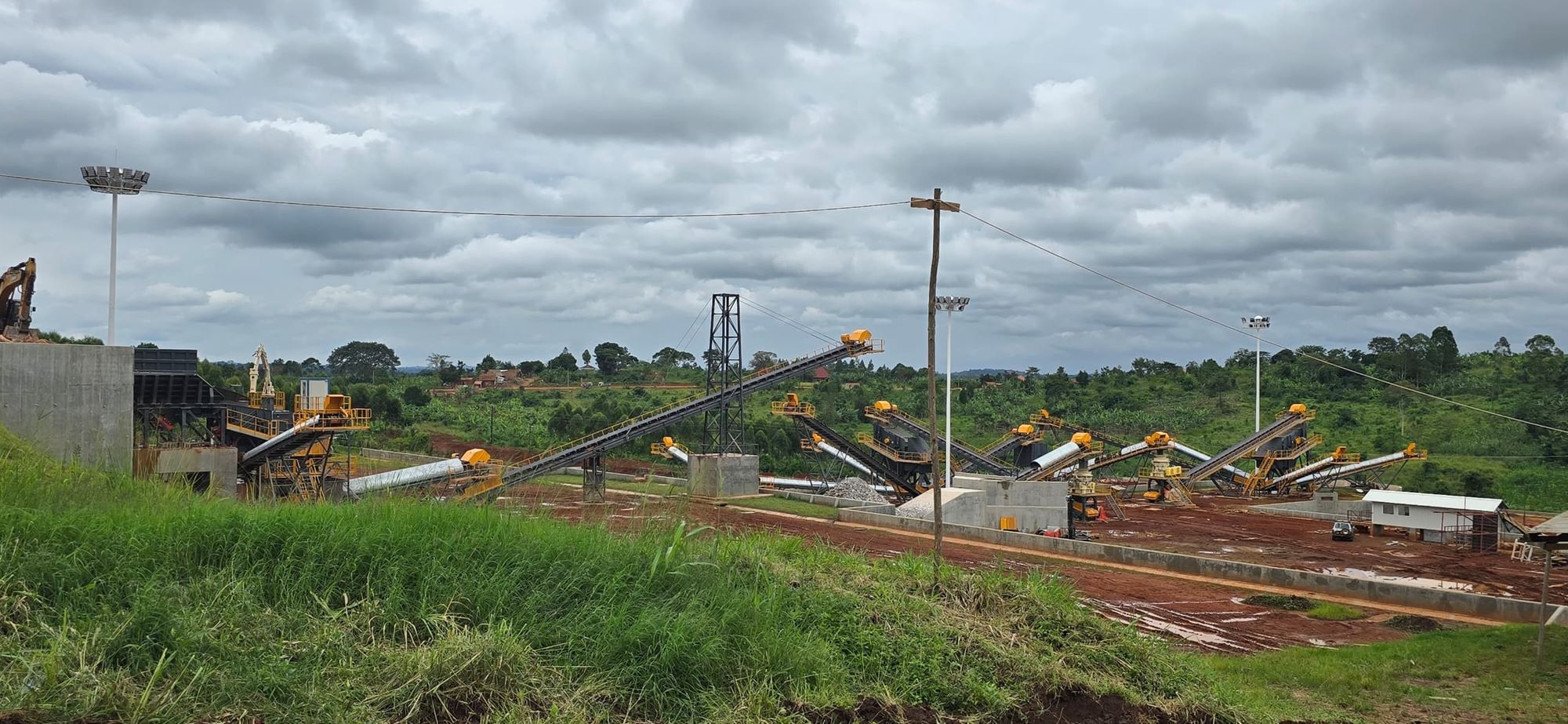

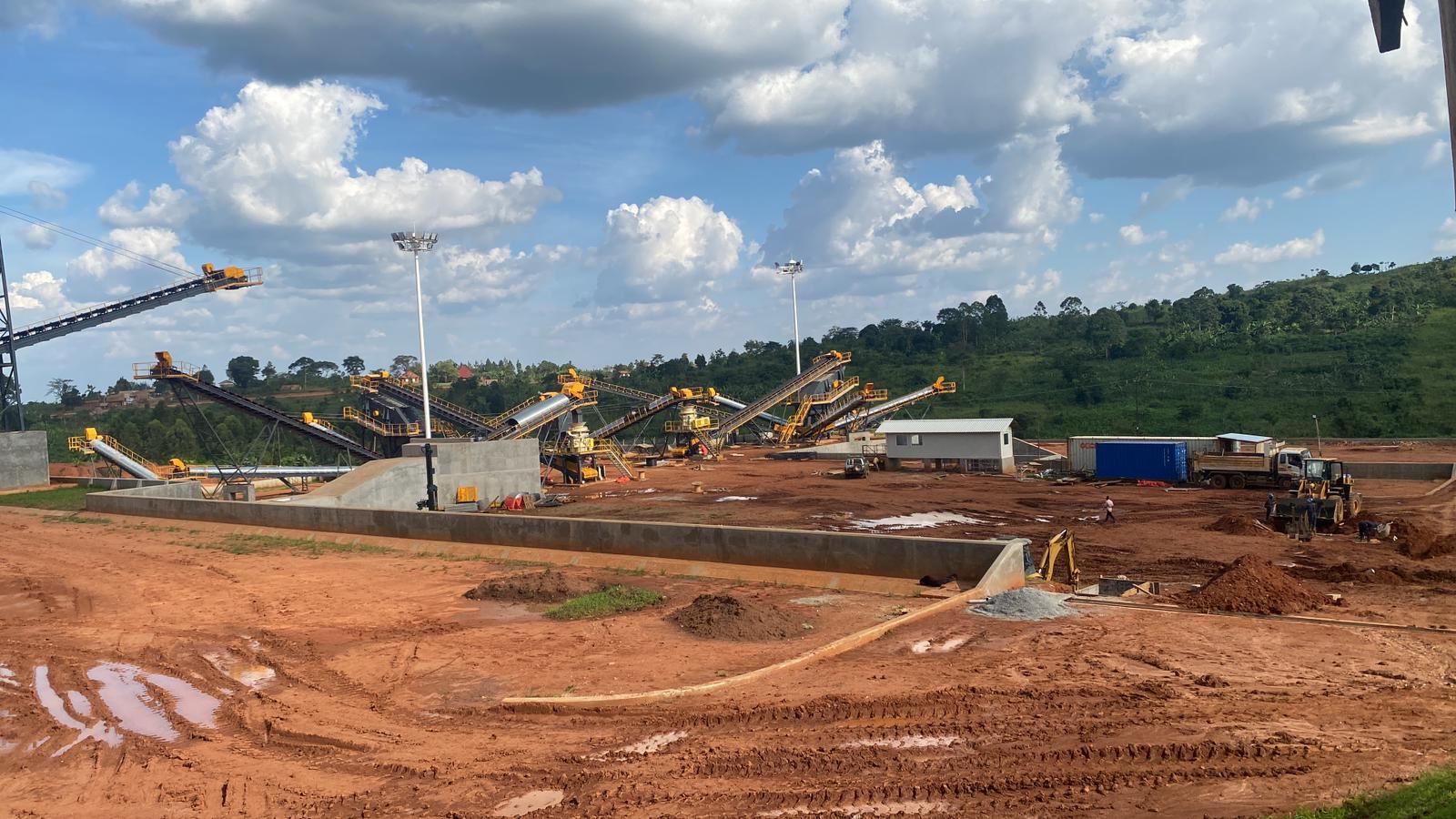

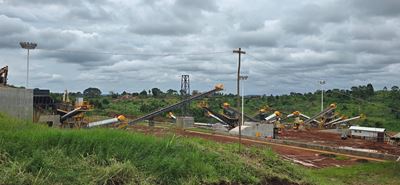

MEKA is proud to announce the delivery of a crushing and screening plant in WAKISO District, Uganda. It is no surprise that MEKA is becoming a reliable partner for many projects in Africa. Being able to engineer and manufacture the complete project in-house has allowed us to serve the quality and reliability expectations of our customers.

Earlier deliveries in Africa were for crushing of hard,abrasive rocks like granite, basalt and also for softer rocks like limestone. Several plants were brought into operation in Kenya, Rwanda, Nigeria, Mozambique, Mauritius,Burkina Faso, Mali, Senegal, Morocco, Algeria and the results have already surpassed the expectations.

A CUSTOM SOLUTION TAILORED TO PROJECT

MEKA plants can be used to solve problems of any complexity, such as working in difficult climatic and/or inaccessible areas with materials with a complex physical and mechanical structure. In addition to engineering, automation, manufacturing and delivery of the complete three-stage crushing and screening plant, MEKA supervised the mechanical and electrical erection, oversaw the cold and hot commissioning of the plant.

PLANT DESIGN CRITERIA

• Material processed is very hard and abrasive granite,

• Feed material size : 0-700 mm

• Plant capacity : 300 tph

• 6 grades of products are produced,

  0-25mm, 20-40mm,0-6mm, 6-10mm, 10-20mm, 20-25mm

• Plant should be designed considering additional cone crushers and screens for future plant expansion.

EQUIPMENT SELECTION

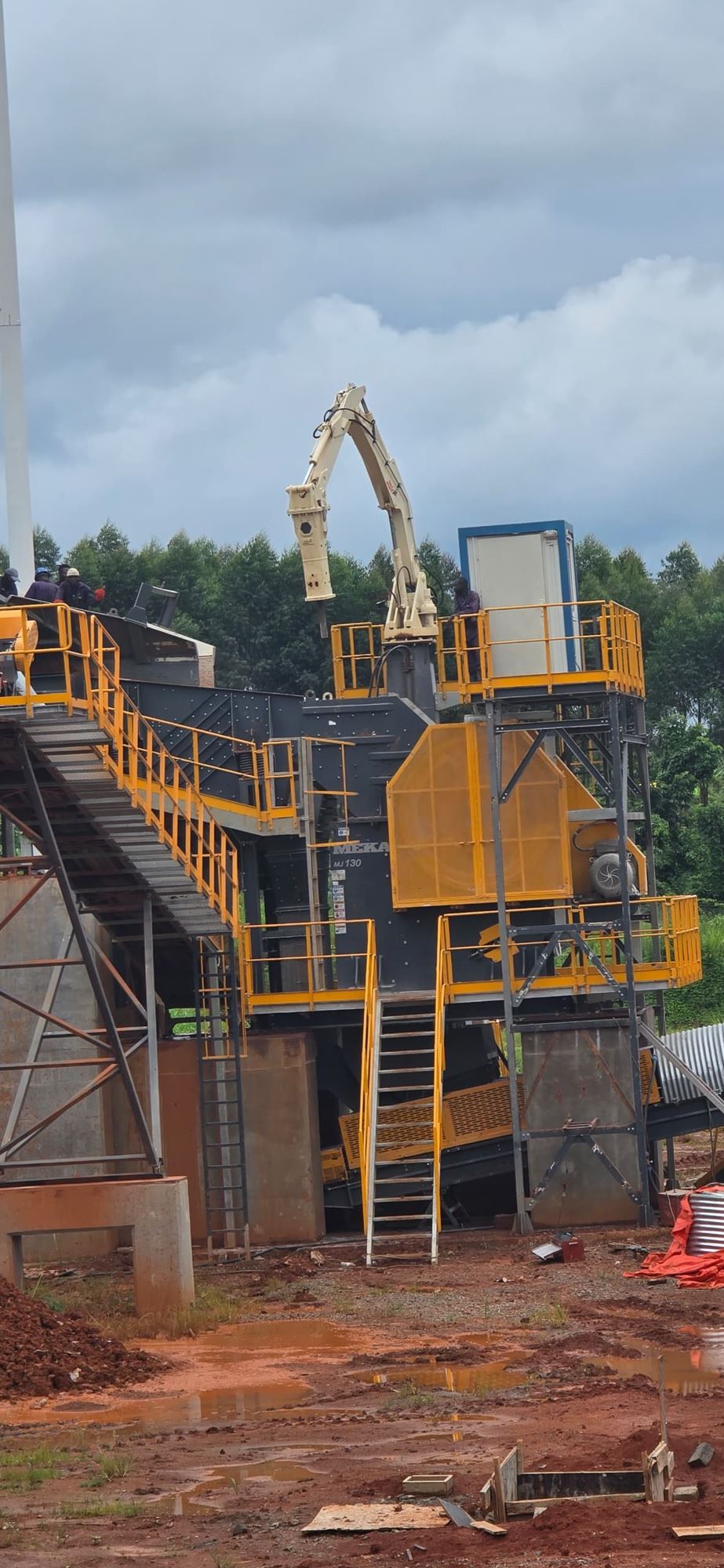

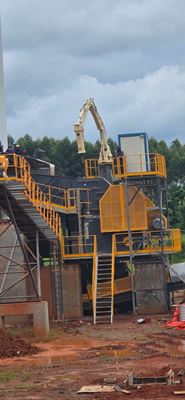

PRIMARY CRUSHING STATION:

Feed hopper with 45 m³ volume,

MSF 1480 Pan Feeder with Grizzly Scalper

MJ 130 Jaw Crusher

Hydraulic Rock Breaker

INTERMEDIATE OPEN STOCKPILE:

Vibrating feeders for extracting material and feeding to a conveyor in a concrete tunnel

SECONDARY CRUSHING STATION:

Cone Crusher with Extra coarse crushing chamber

MS 2460/4 Inclined Screen

TERTIARY CRUSHING STATION:

Surge Bin,

Cone Crusher with medium fine crushing chamber,

MS 2460/4 Inclined Screen,

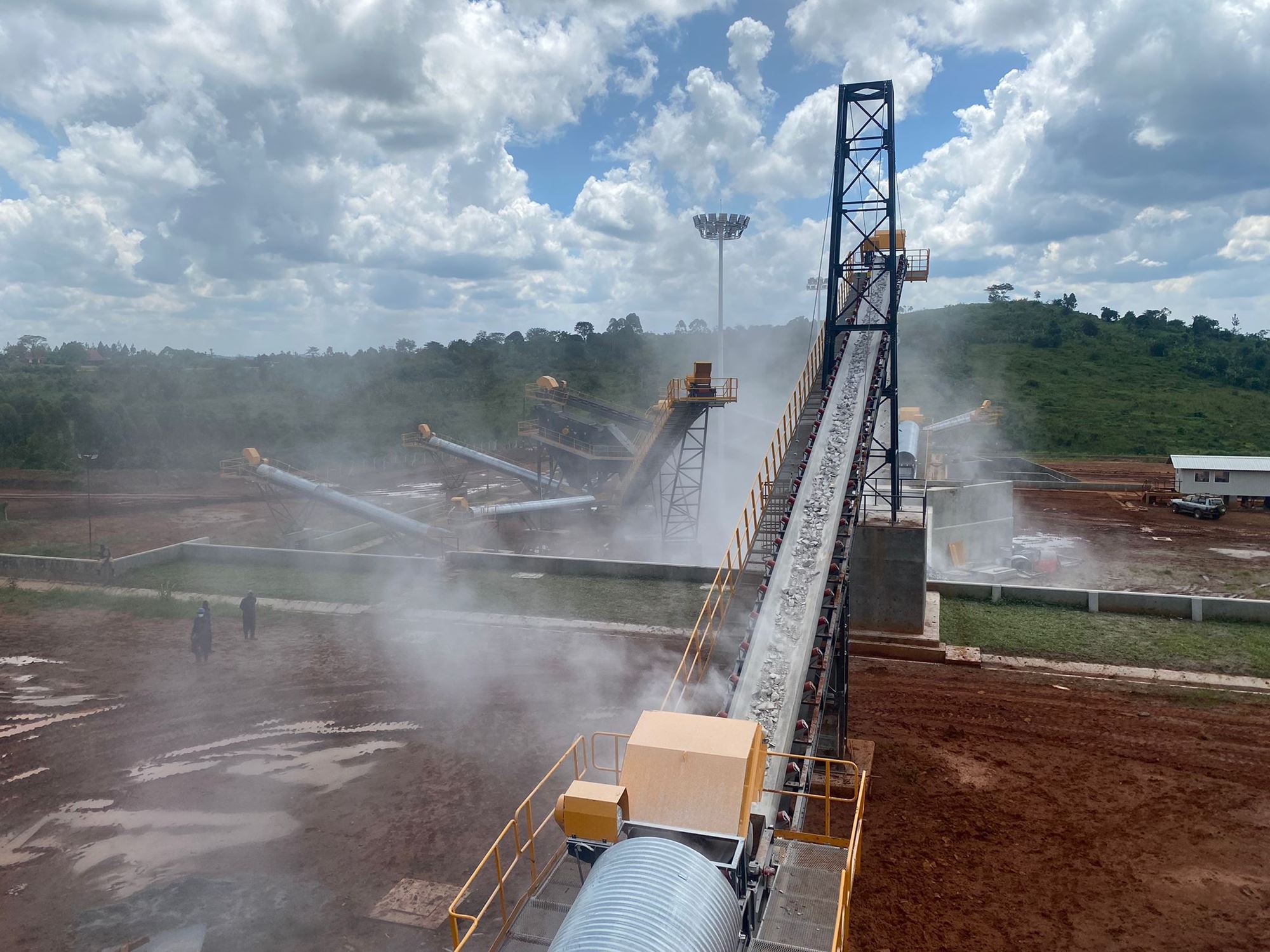

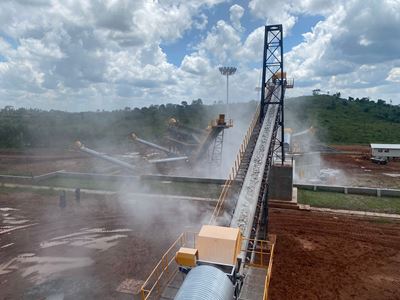

BELT CONVEYORS

ELECTRICAL CONTROL SYSTEM

At MEKA, that’s what we do in terms of developing the future:

Working very close and in partnership with the customers, listening to their opinions and learning how to develop win-win solutions, so their operations will become more profitable.
